5-6605308-1

Active

Bel Power Solutions

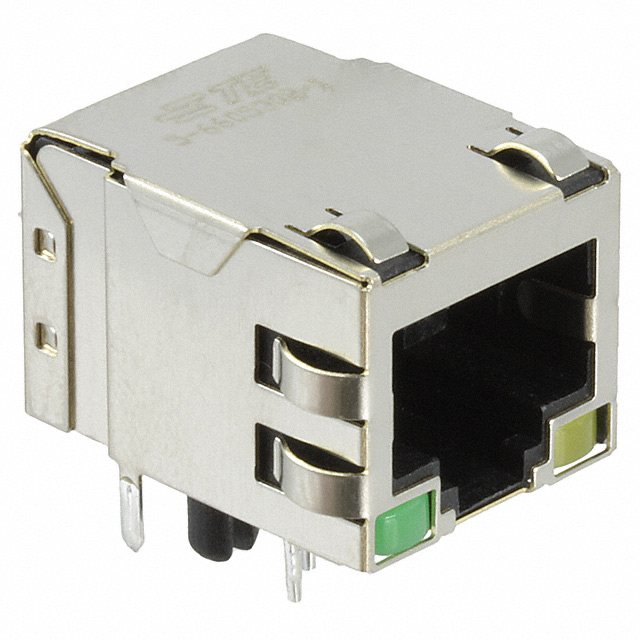

CONN JACK 1PORT PCB

Search across all available documentation for this part.

Active

Bel Power Solutions

CONN JACK 1PORT PCB

Technical Specifications

Parameters and characteristics for this part

Specification	5-6605308-1

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

CONN JACK 1PORT PCB

Part	Applications	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Shielding	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Material	Height Above Board [z]	Height Above Board [z]	Number of Rows	Number of Ports	Tab Direction	Contact Finish	LED Color	Orientation
Bel Power Solutions 5-6605308-1	10/100 Base-T, AutoMDIX	Through Hole	RJ45	50 µin	1.27 µm	Brass	Shielded, EMI Finger	Board Guide	Solder	70 °C	0 °C	Polyester, Polyethylene Terephthalate (PET)	Phosphor Bronze	14.1 mm	0.555 in	1	1	Down	Gold	Green, Yellow	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX
