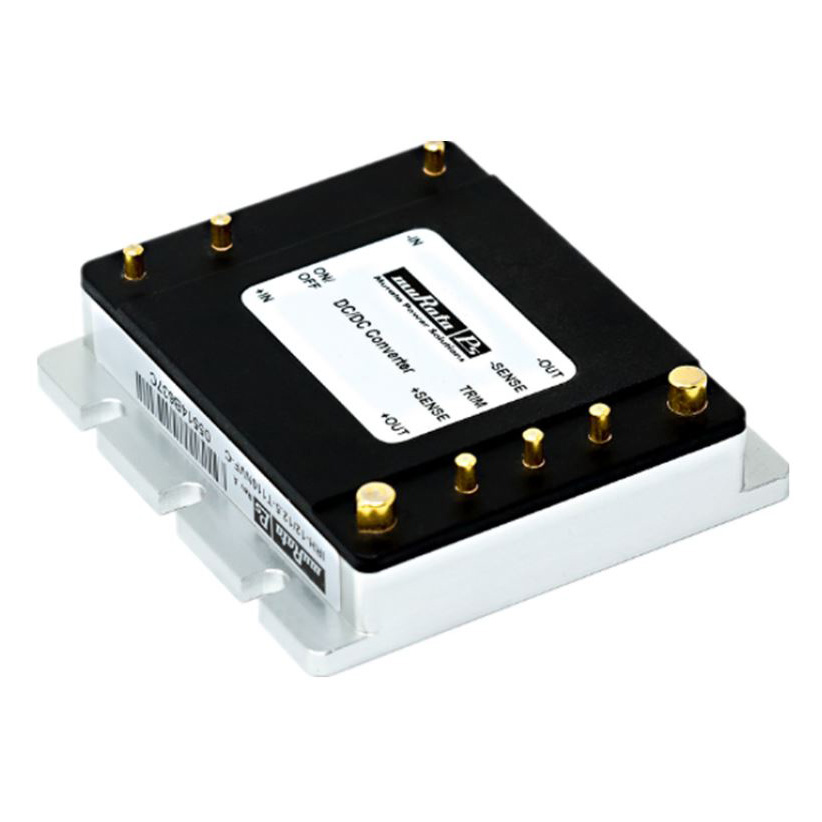

IRH-24/6.3-T110P-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 150W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 150W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IRH-24/6.3-T110P-C	IRH-24 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Current - Output (Max) [Max]	6.25 A	6.25 A
Efficiency	89 %	89 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Half Brick	Half Brick
Power (Watts)	150 W	150 W
Size / Dimension [x]	61 mm	58.2 - 61 mm
Size / Dimension [x]	2.4 in	2.29 - 2.4 in
Size / Dimension [y]	2.28 in	2.2 - 2.28 in
Size / Dimension [y]	57.9 mm	55.9 - 57.9 mm
Size / Dimension [z]	12.7 "	12.7 "
Size / Dimension [z]	12.7 mm	12.7 mm
Supplier Device Package	Half Brick	Half Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	57.6 V	57.6 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	24 V

DC DC CONVERTER 24V 150W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Number of Outputs	Supplier Device Package	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Package / Case	Applications	Voltage - Isolation	Voltage - Output 1
Murata Power Solutions Inc. IRH-24/6.3-T110PVF-C	85 °C	-40 °C	Isolated Module	150 W	1	Half Brick	6.25 A	Through Hole	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	89 %	57.6 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	Half Brick	ITE (Commercial), Railway	3000 V	24 V
Murata Power Solutions Inc. IRH-24/6.3-T110NVF-C	85 °C	-40 °C	Isolated Module	150 W	1	Half Brick	6.25 A	Through Hole	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	89 %	57.6 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	Half Brick	ITE (Commercial), Railway	3000 V	24 V
Murata Power Solutions Inc. IRH-24/6.3-T110P-C	85 °C	-40 °C	Isolated Module	150 W	1	Half Brick	6.25 A	Through Hole	2.28 in	12.7 "	61 mm	57.9 mm	12.7 mm	2.4 in	89 %	57.6 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	Half Brick	ITE (Commercial), Railway	3000 V	24 V
Murata Power Solutions Inc. IRH-24/6.3-T110NF-C	85 °C	-40 °C	Isolated Module	150 W	1	Half Brick	6.25 A	Through Hole	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	89 %	57.6 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	Half Brick	ITE (Commercial), Railway	3000 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 24V 6.25A 57.6V - 160V Input
