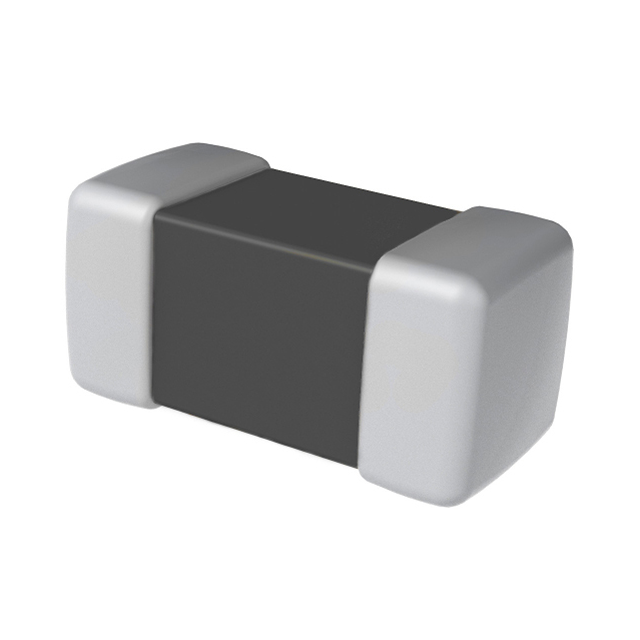

Z1806C720APWST

Obsolete

KEMET

FERRITE BEAD 72 OHM 1806 1LN

Search across all available documentation for this part.

Obsolete

KEMET

FERRITE BEAD 72 OHM 1806 1LN

Technical Specifications

Parameters and characteristics commom to parts in this series

FERRITE BEAD 72 OHM 1806 1LN

Part	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Impedance @ Frequency	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Number of Lines	Filter Type	Current Rating (Max) [Max]
KEMET Z1806C720APWST	7 mOhm	125 °C	-40 °C	0.051 "	1.3 mm	72 Ohms	1806 (4516 Metric)	1.6 mm	0.177 in	0.063 in	4.5 mm	Surface Mount	1	Power Line	6 A
KEMET Z1806C111APWST	14 mOhm	125 °C	-40 °C	0.051 "	1.3 mm	110 Ohms	1806 (4516 Metric)	1.6 mm	0.177 in	0.063 in	4.5 mm	Surface Mount	1	Power Line	4 A
KEMET Z1806C560BPWST	7 mOhm	125 °C	-40 °C	0.051 "	1.3 mm	56 Ohms	1806 (4516 Metric)	1.6 mm	0.177 in	0.063 in	4.5 mm	Surface Mount	1	Power Line	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

72 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1806 (4516 Metric) 6A 7mOhm
