15926
ActiveAllied Vision, Inc.

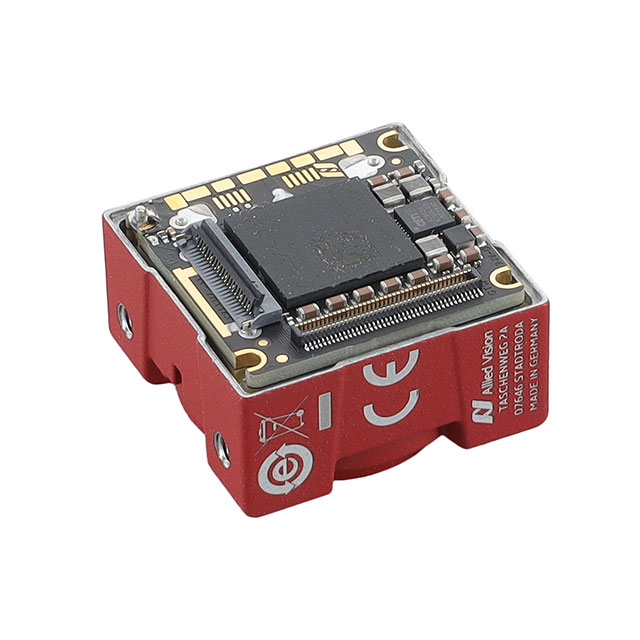

CAMERA 1800 C-511C COLOR S-MOUNT
15926
ActiveAllied Vision, Inc.
CAMERA 1800 C-511C COLOR S-MOUNT
Description
General part information
15926
CAMERA 1800 C-511C COLOR S-MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 15926 |
|---|---|
| Frames per Second | 78 fps |
| Height (Max) | 1.157 in |
| Interface | CSI-2, MIPI |
| Lens Mount | S |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Package Name | Module |
| Pixel Size (Length) | 2.74 µm |
| Pixel Size (Width) | 2.74 µm |
| Resolution Height | 2064 |
| Resolution Width | 2464 |
| Sensor | IMX547 |
| Shutter | Global |
| Size / Dimension Length | 1.157 in |
| Size / Dimension Width | 0.756 in |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
