103311-1
ActiveTE Connectivity AMP Connectors

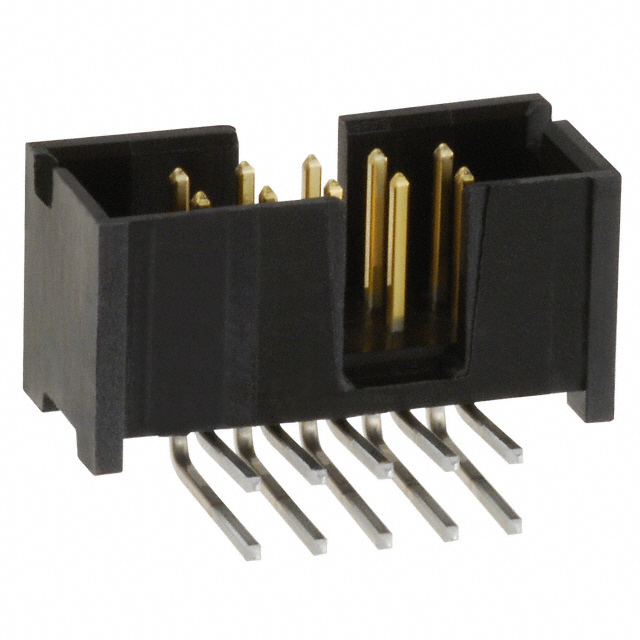

CONN HEADER R/A 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
103311-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103311-1 | 103311 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post [x] | 0.135 in | 0.135 in |
| Contact Length - Post [x] | 3.43 mm | 3.43 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 9.14 mm | 9.14 mm |
| Insulation Height | 0.36 in | 0.36 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.63 | |
| 10 | $ 1.49 | |||
| 125 | $ 1.33 | |||
| 500 | $ 1.19 | |||
| 1000 | $ 1.06 | |||
| 5000 | $ 0.95 | |||
| 10000 | $ 0.91 | |||
103311 Series
CONN HEADER R/A 16POS 2.54MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Material Flammability Rating | Shrouding | Connector Type | Pitch - Mating | Pitch - Mating | Style | Insulation Height | Insulation Height | Number of Positions | Number of Rows | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating | Contact Length - Mating [x] | Features | Insulation Color | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Contact Type | Termination | Fastening Type | Number of Positions Loaded | Current Rating (Amps) | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103311-3 | -65 ░C | 105 ░C | Brass | Through Hole, Right Angle | UL94 V-0 | Shrouded - 4 Wall | Header | 0.1 in | 2.54 mm | Board to Cable/Wire | 9.14 mm | 0.36 in | 16 | 2 | 2.54 mm | 0.1 in | 6.1 mm | 0.24 in | Keying Slot | Black | Square | 0.135 in | 3.43 mm | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | Tin-Lead | Male Pin | Solder | Push-Pull | All | 1 A | Gold or Gold-Palladium | |
TE Connectivity AMP Connectors 103311-5 | -65 ░C | 105 ░C | Brass | Through Hole, Right Angle | UL94 V-0 | Shrouded - 4 Wall | Header | 0.1 in | 2.54 mm | Board to Cable/Wire | 9.14 mm | 0.36 in | 2 | 2.54 mm | 0.1 in | 6.1 mm | 0.24 in | Keying Slot | Black | Square | 0.135 in | 3.43 mm | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | Tin-Lead | Male Pin | Solder | Push-Pull | All | 1 A | Gold or Gold-Palladium | 20 | |
TE Connectivity AMP Connectors 103311-1 | -65 ░C | 105 ░C | Brass | Through Hole, Right Angle | UL94 V-0 | Shrouded - 4 Wall | Header | 0.1 in | 2.54 mm | Board to Cable/Wire | 9.14 mm | 0.36 in | 2 | 2.54 mm | 0.1 in | 6.1 mm | 0.24 in | Black | Square | 0.135 in | 3.43 mm | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | Tin-Lead | Male Pin | Solder | Push-Pull | All | 1 A | Gold or Gold-Palladium | 10 | ||
TE Connectivity AMP Connectors 1-103311-0 | -65 ░C | 105 ░C | Brass | Through Hole, Right Angle | UL94 V-0 | Shrouded - 4 Wall | Header | 0.1 in | 2.54 mm | Board to Cable/Wire | 9.14 mm | 0.36 in | 2 | 2.54 mm | 0.1 in | 6.1 mm | 0.24 in | Keying Slot | Black | Square | 0.135 in | 3.43 mm | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | Tin-Lead | Male Pin | Solder | Push-Pull | All | 1 A | Gold or Gold-Palladium | 50 |
Description
General part information
103311 Series
Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
