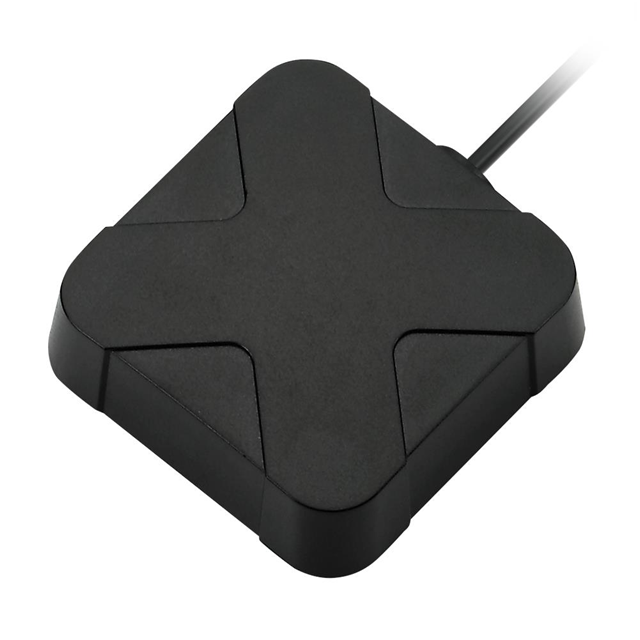

AA.171.301111

Active

TAOGLAS

RF ANTENNA, 1.559 TO 1.61GHZ, GPS / GLONASS / GALILEO / BEIDOU, 3.1DBI, 50 OHM, RIGHT HAND CIRCULAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 1.559 TO 1.61GHZ, GPS / GLONASS / GALILEO / BEIDOU, 3.1DBI, 50 OHM, RIGHT HAND CIRCULAR

Technical Specifications

Parameters and characteristics for this part

RF ANTENNA, 1.559 TO 1.61GHZ, GPS / GLONASS / GALILEO / BEIDOU, 3.1DBI, 50 OHM, RIGHT HAND CIRCULAR

Part	RF Family/Standard	Ingress Protection	Mounting Type	VSWR	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Applications	Features	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Gain	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Number of Bands
TAOGLAS AA.171.301111	Navigation	IP65	Magnetic	2	Ceramic Patch	0.673 in	17.1 mm	Beidou, GLONASS, GPS	Cable - 3m, Filter, LNA	2 GHz	1 GHz	UHF	1.43 dBi, 2.06 dBi, 4.16 dBi	1.559 GHz	1.61 GHz	1.561 GHz, 1.575 GHz, 1.602 GHz	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, GLONASS, GPS Ceramic Patch SMA Male Magnetic
