DC0019/03-TG-A486G-0.3-2A
t-Global Technology

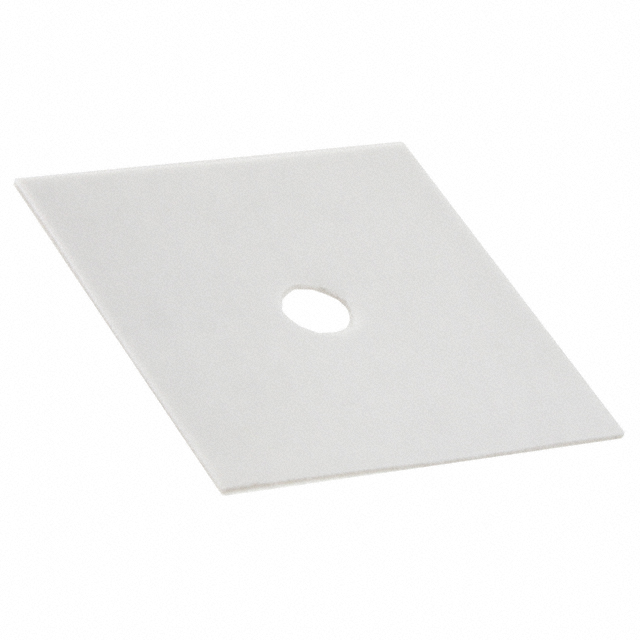

THERM PAD 31.75MMX31.75MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0019/03-TG-A486G-0.3-2A
t-Global Technology
THERM PAD 31.75MMX31.75MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0019/03-TG-A486G-0.3-2A | DC0019/03 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Gray | Yellow, Gray, White, Red |
| Material | - | Silicone |
| Outline [x] | 31.75 mm | 31.75 mm |
| Outline [y] | 31.75 mm | 31.75 mm |
| Shape | Square | Square |
| Shelf Life | 12 Months | 12 - 24 Months |
| Shelf Life Start | Date of Purchase | Date of Purchase |
| Thermal Conductivity | 6 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness [custom] | 0.305 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.012 " | 0.01 - 0.012 in |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | Rectifier | Rectifier |
DC0019/03 Series
THERM PAD 31.75MMX31.75MM W/ADH
| Part | Type | Usage | Outline [y] | Outline [x] | Shape | Thickness [custom] | Thickness [custom] | Adhesive | Shelf Life | Color | Thermal Conductivity | Shelf Life Start | Material | Backing, Carrier | Thickness [x] | Thickness [x] | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0019/03-TG-A373F-0.25-2A | Die-Cut Pad, Sheet | Rectifier | 31.75 mm | 31.75 mm | Square | 0.254 mm | 0.01 in | Adhesive - Both Sides | 12 Months | Yellow | 1.4 W/m-K | |||||||
t-Global Technology DC0019/03-TG-A486G-0.3-2A | Die-Cut Pad, Sheet | Rectifier | 31.75 mm | 31.75 mm | Square | 0.305 mm | 0.012 " | Adhesive - Both Sides | 12 Months | Gray | 6 W/m-K | Date of Purchase | ||||||
t-Global Technology DC0019/03-TI900-0.12-2A | Die-Cut Pad, Sheet | Rectifier | 31.75 mm | 31.75 mm | Square | Adhesive - Both Sides | 24 Months | White | 1.8 W/m-K | Silicone | Viscose | 0.005 in | 0.127 mm | |||||
t-Global Technology DC0019/03-TG-A482K-0.1-0 | Die-Cut Pad, Sheet | Rectifier | 31.75 mm | 31.75 mm | Square | 24 Months | Red | 2.3 W/m-K | Date of Purchase | Silicone | 0.1 mm | 0.0039 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.70 | |
| 10 | $ 3.60 | |||
| 25 | $ 2.60 | |||
| 50 | $ 2.51 | |||
| 100 | $ 3.12 | |||
| 250 | $ 2.41 | |||
| 1000 | $ 2.53 | |||
Description
General part information
DC0019/03 Series
Thermal Pad Gray 31.75mm x 31.75mm Square Adhesive - Both Sides
