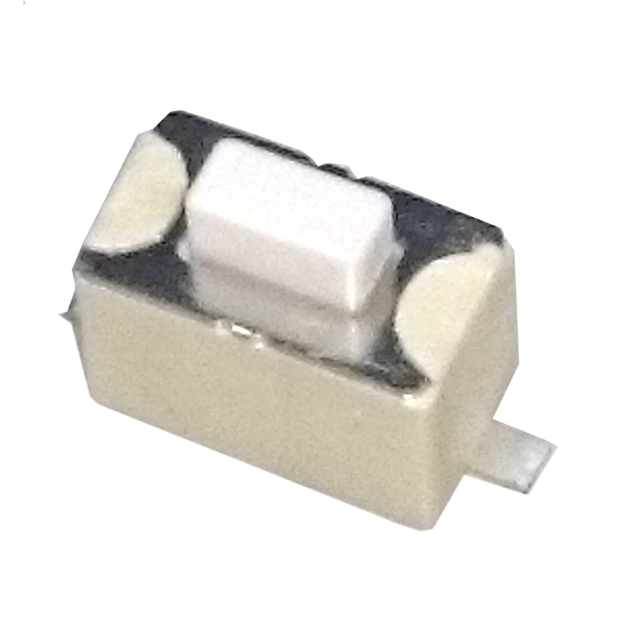

222BMVBBR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	222BMVBBR

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	30000 Steps
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Circuit	Outline [y]	Outline [x]	Mounting Type	Contact Rating @ Voltage	Actuator Orientation	Mechanical Life	Switch Function	Actuator Height off PCB, Vertical	Termination Style	Actuator Type	Illumination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Switch Travel
CTS Electrocomponents 222BMVBBR	SPST-NO	3.5 mm	6 mm	Surface Mount	0.05 A, 12 VDC	Top Actuated	30000 Steps	Off-Mom	5 mm	Gull Wing	Rectangular Button	Non-Illuminated	Tactile Feedback	85 °C	-40 °C	260 gf	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10500	$ 0.16

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
