PHN.1F.305.XLM
ActiveLEMO

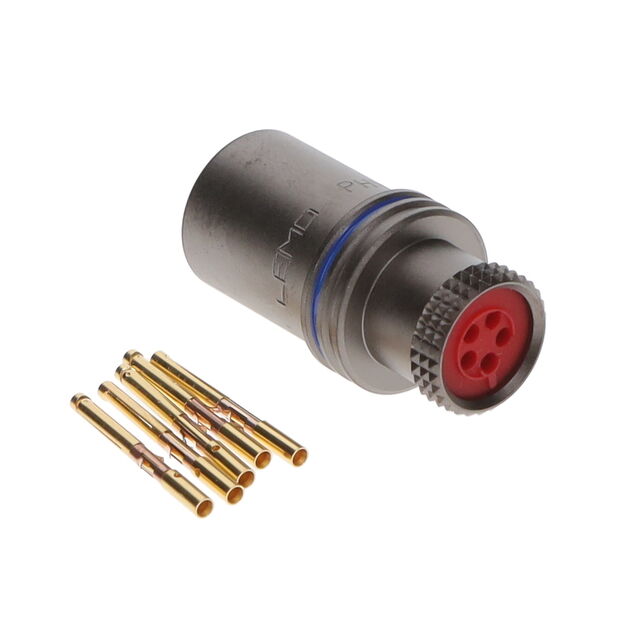

CONN RCPT FMALE 5POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHN.1F.305.XLM
ActiveLEMO
CONN RCPT FMALE 5POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PHN.1F.305.XLM | PHN.1F Series |
|---|---|---|
| Applications | Aerospace | Aerospace |
| Cable Opening [custom] | 0.421 in | 0.421 in |
| Cable Opening [custom] | 10.7 mm | 10.7 mm |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 9 A | 5 - 12 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 7 - 8 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -15 °C | -15 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 305 | 303 - 308 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
PHN.1F Series
CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Shielding | Insert Material | Contact Material | Current Rating (Amps) | Ingress Protection | Applications | Cable Opening [custom] | Cable Opening [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shell Finish | Orientation | Fastening Type | Contact Finish - Mating | Shell Material | Color | Material Flammability Rating | Termination | Shell Size - Insert | Primary Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PHN.1F.305.XLM | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Shielded | Polyetheretherketone (PEEK) | Bronze | 9 A | IP67 - Dust Tight, Waterproof | Aerospace | 0.421 in | 10.7 mm | 200 °C | -15 °C | Free Hanging (In-Line) | Nickel | N | Push-Pull | Gold | Aluminum Alloy | Gray | UL94 V-0 | Crimp | 305 | Metal | |
LEMO PHN.1F.307.XLM | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Shielded | Polyetheretherketone (PEEK) | Bronze | 7 A | IP67 - Dust Tight, Waterproof | Aerospace | 0.421 in | 10.7 mm | 200 °C | -15 °C | Free Hanging (In-Line) | Nickel | N | Push-Pull | Gold | Aluminum Alloy | Gray | UL94 V-0 | Crimp | 307 | Metal | 7 |
LEMO PHN.1F.308.XLM | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Shielded | Polyetheretherketone (PEEK) | Bronze | 5 A | IP67 - Dust Tight, Waterproof | Aerospace | 0.421 in | 10.7 mm | 200 °C | -15 °C | Free Hanging (In-Line) | Nickel | N | Push-Pull | Gold | Aluminum Alloy | Gray | UL94 V-0 | Crimp | 308 | Metal | 8 |
LEMO PHN.1F.303.XLM | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Shielded | Polyetheretherketone (PEEK) | Bronze | 12 A | IP67 - Dust Tight, Waterproof | Aerospace | 0.421 in | 10.7 mm | 200 °C | -15 °C | Free Hanging (In-Line) | Nickel | N | Push-Pull | Gold | Aluminum Alloy | Gray | UL94 V-0 | Crimp | 303 | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 82.45 | |
| 10 | $ 75.66 | |||
| 25 | $ 72.75 | |||
| 50 | $ 70.33 | |||
| 100 | $ 66.45 | |||
Description
General part information
PHN.1F Series
5 Position Circular Connector Receptacle, Female Sockets Crimp
