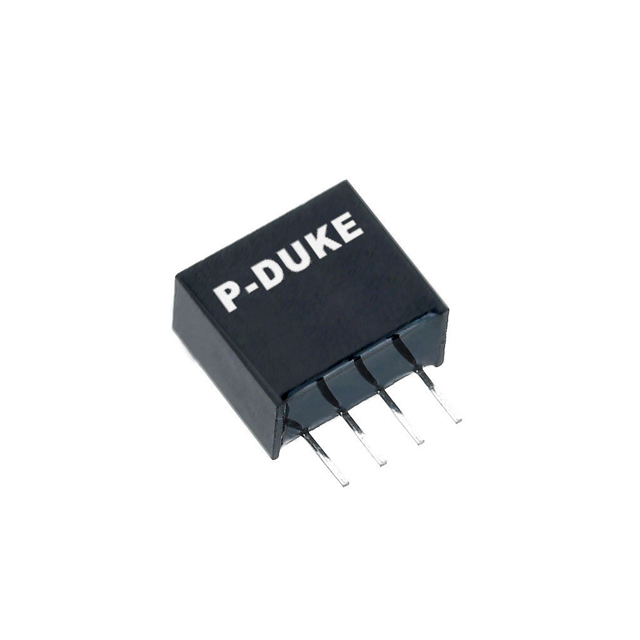

EUR01-12S12

Active

P-DUKE Technology

DC DC CONVERTER 12V 996MW

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 12V 996MW

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 996MW

Part	Package / Case	Type	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Isolation	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]
P-DUKE Technology EUR01-12S12	4-SIP Module	Isolated Module	12 V	1	10.8 V	Through Hole	CE	13.2 V	1.6 kV	76 %	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	996 mW	83 mA	ITE (Commercial)	85 °C	-40 °C
P-DUKE Technology EUR01-24S05	4-SIP Module	Isolated Module	5 V	1	21.6 V	Through Hole	CE	26.4 V	1.6 kV	73 %	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in		200 mA	ITE (Commercial)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 83mA 10.8V - 13.2V Input
