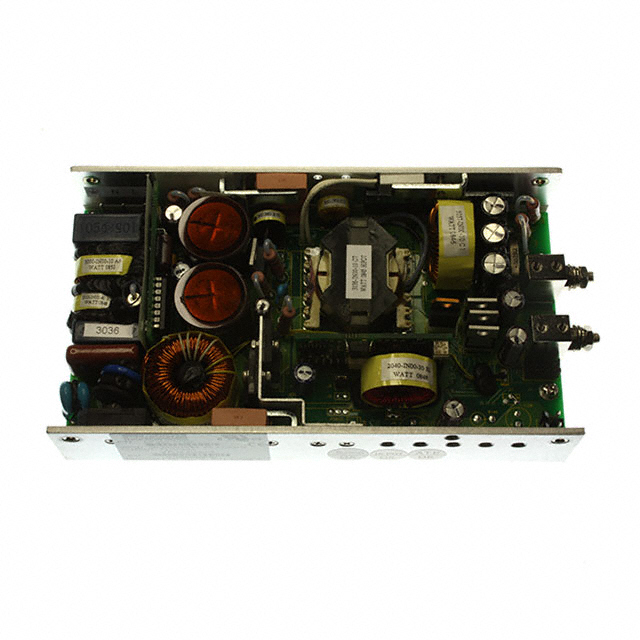

CF350-A12C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 350W
Deep-Dive with AI
Search across all available documentation for this part.
CF350-A12C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 350W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CF350-A12C | CF350 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | cUR, CE | cUR, CE |
| Current - Output 1 | 29 A | 14.5 - 29 A |
| Efficiency | 87 % | 87 % |
| Features | Universal Input, PFC, Remote Sense, Load Sharing, Adjustable Output, Hot Swappable | Universal Input, PFC, Remote Sense, Load Sharing, Adjustable Output, Hot Swappable |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -5 °C | -5 °C |
| Power (Watts) | 350 W | 350 W |
| Size / Dimension [x] | 172.7 mm | 172.7 mm |
| Size / Dimension [x] | 6.8 " | 6.8 " |
| Size / Dimension [y] | 98 mm | 98 mm |
| Size / Dimension [y] | 3.86 in | 3.86 in |
| Size / Dimension [z] | 1.4 " | 1.4 " |
| Size / Dimension [z] | 35.6 mm | 35.6 mm |
| Type | Open Frame | Open Frame |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 12 V | 12 - 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CF350 Series
AC/DC CONVERTER 24V 350W
| Part | Current - Output 1 | Approval Agency | Efficiency | Features | Voltage - Isolation | Mounting Type | Number of Outputs | Power (Watts) | Voltage - Output 1 | Applications | Type | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CF350-A24C | 14.5 A | CE, cUR | 87 % | Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote Sense, Universal Input | 3000 V | Chassis Mount | 1 | 350 W | 24 V | ITE (Commercial) | Open Frame | -5 °C | 70 °C | 172.7 mm | 6.8 " | 98 mm | 1.4 " | 3.86 in | 35.6 mm |
Murata Power Solutions Inc. CF350-A12C | 29 A | CE, cUR | 87 % | Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote Sense, Universal Input | 3000 V | Chassis Mount | 1 | 350 W | 12 V | ITE (Commercial) | Open Frame | -5 °C | 70 °C | 172.7 mm | 6.8 " | 98 mm | 1.4 " | 3.86 in | 35.6 mm |
Description
General part information
CF350 Series
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
