3212140
ActivePhoenix Contact

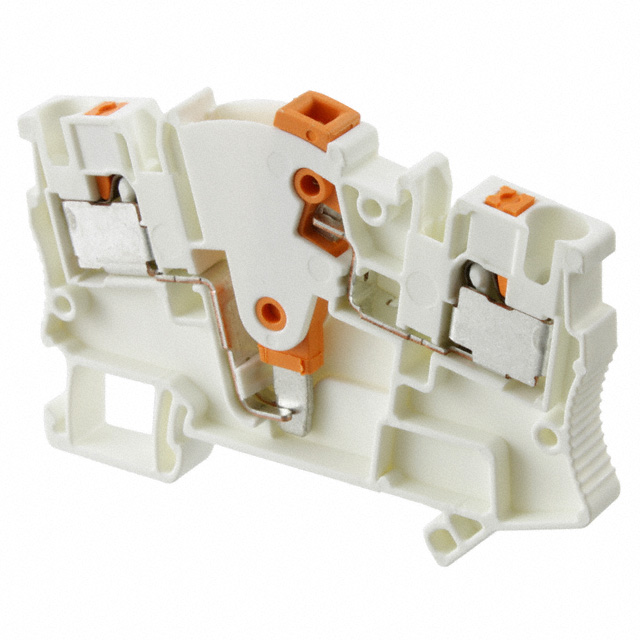

CONN TERM BLK DISCONN 10-24AWG
3212140
ActivePhoenix Contact
CONN TERM BLK DISCONN 10-24AWG
Description
General part information
3212140
Terminal Block Connector 2 Position Disconnect White 10-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3212140 |
|---|---|
| Color | White |
| Current - IEC | 24 A |
| Current - UL | 26 A |
| Disconnect Type | Switch, Lever |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 12 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Push In, Spring |
| Type | Disconnect |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
