926647-3

Active

TE Connectivity AMP Connectors

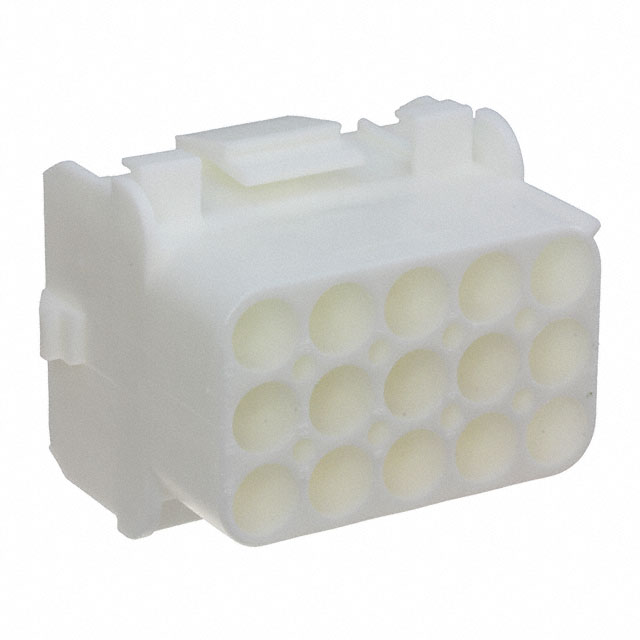

CONN RCPT HSG 15POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 15POS 6.35MM

Technical Specifications

Parameters and characteristics for this part

CONN RCPT HSG 15POS 6.35MM

Part	Note	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Number of Rows	Contact Type	Connector Type	Fastening Type	Color	Row Spacing	Row Spacing	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 926647-3	Contacts Not Included	Panel Mount, Snap-In	0.25 in	6.35 mm	15	Crimp	3	Male Pin	Receptacle	Locking Ramp	Natural	6.35 mm	0.25 in	Polyamide (PA66), Nylon 6/6	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Rectangular Connectors - Housings Receptacle Natural 0.250" (6.35mm)

Technical documentation and resources
