Connectors, Interconnects
926647-3
ActiveTE Connectivity Raychem Cable Protection

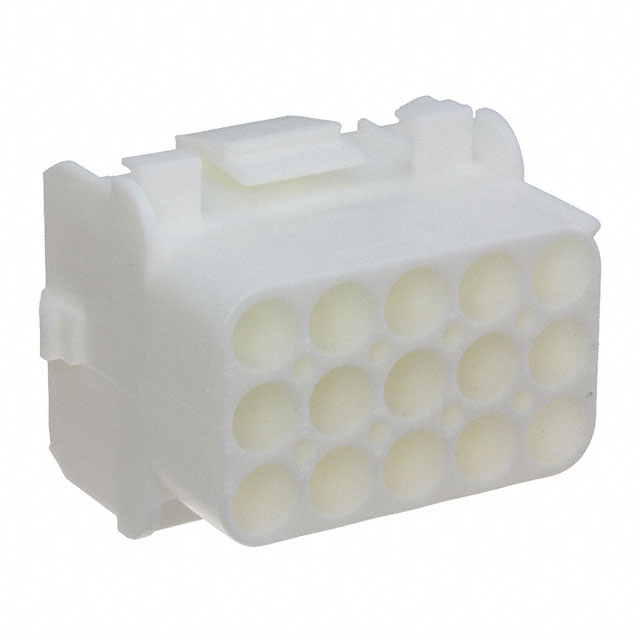

CONN RCPT HSG 15POS 6.35MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 926647-3 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Row Spacing | 6.35 mm |
| Row Spacing | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.40 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.26 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.09 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.89 | |||
| 2500 | $ 0.83 | |||
Description
General part information
926647 Series
15 Rectangular Connectors - Housings Receptacle Natural 0.250" (6.35mm)
