1241.1110.4094

Active

SCHURTER Inc.

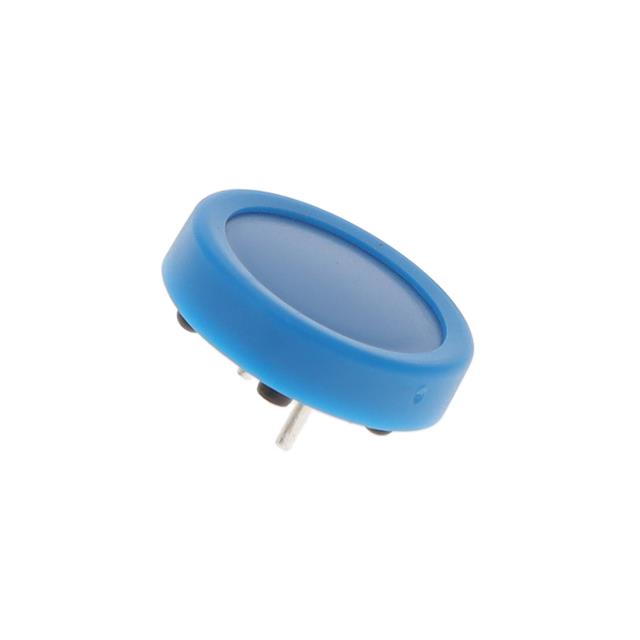

SWITCH PUSH SPST-NO 125MA 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.1110.4094	1241.1110 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Blue	Blue, White
Current Rating (Amps)	125 mA	125 mA
Electrical Life	1000000 Cycles	1000000 Cycles
Features	Tactile Feedback	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	Off-Mom	Off-Mom
Termination Style	PC Pin	PC Pin
Type	Standard	Standard
Voltage Rating - DC	48 V	48 V

SWITCH PUSH SPST-NO 125MA 48V

Part	Mechanical Life	Voltage Rating - DC	Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Marking	Ingress Protection	Switch Function	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Electrical Life	Circuit	Features
SCHURTER Inc. 1241.1110.4094	1000000 Cycles	48 V	Standard	Button, Flush, Round	-25 °C	60 °C	PC Pin	No Marking	IP65 - Dust Tight, Water Resistant	Off-Mom	Blue	Through Hole	125 mA	1000000 Cycles	SPST-NO	Tactile Feedback
SCHURTER Inc. 1241.1110.7098	1000000 Cycles	48 V	Standard	Button, Flush, Round	-25 °C	60 °C	PC Pin	No Marking	IP65 - Dust Tight, Water Resistant	Off-Mom	White	Through Hole	125 mA	1000000 Cycles	SPST-NO	Tactile Feedback

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole
