PEC07SFEN

Active

Sullins Connector Solutions

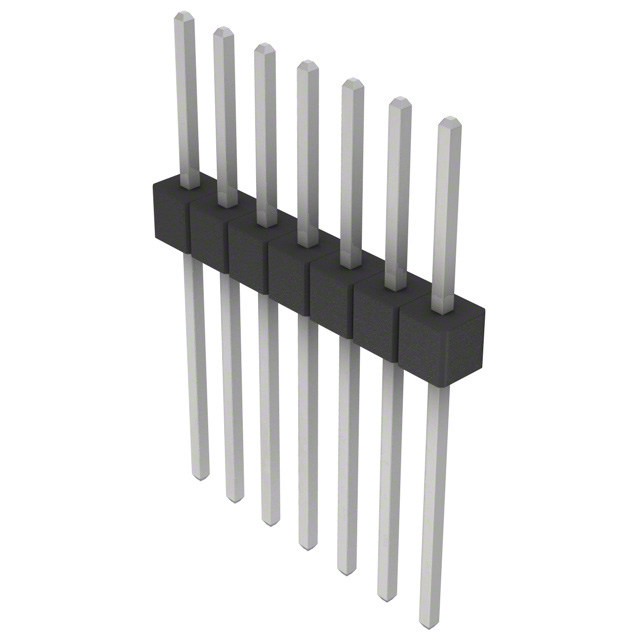

CONN HEADER VERT 7POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC07SFEN

Active

Sullins Connector Solutions

CONN HEADER VERT 7POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC07SFEN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.938 in
Overall Contact Length	23.83 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC07 Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Type	Contact Shape	Style	Shrouding	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Connector Type	Number of Rows	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Material	Insulation Material	Contact Finish - Post	Number of Positions	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PEC07SFEN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.318 "	8.08 mm	0.1 in	2.54 mm	Solder	13.21 mm	0.52 "	2.54 µm	100 µin	0.938 in	23.83 mm	All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7
Sullins Connector Solutions PEC07SAAN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.23 in		0.1 in	2.54 mm	Solder			2.54 µm	100 µin	0.45 "	11.43 mm	All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7	5.84 mm	0.12 in	3.05 mm
Sullins Connector Solutions PEC07SACN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.23 in		0.1 in	2.54 mm	Solder			2.54 µm	100 µin		0.65 in	All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7	5.84 mm	0.32 in	8.13 mm	16.51 mm
Sullins Connector Solutions PEC07DGBN	Through Hole Right Angle	125 °C	-65 ░C	3 A	0.24 in	6.1 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.318 "	8.08 mm	0.1 in	2.54 mm	Solder			2.54 µm	100 µin			All	Breakaway Header	2	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	14		0.2 in	5.08 mm		2.54 mm	0.1 in
Sullins Connector Solutions PEC07DACN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.23 in		0.1 in	2.54 mm	Solder			2.54 µm	100 µin		0.65 in	All	Breakaway Header	2	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	14	5.84 mm	0.32 in	8.13 mm	16.51 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC07DAGN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.23 in		0.1 in	2.54 mm	Solder			2.54 µm	100 µin	1.05 in	26.67 mm	All	Breakaway Header	2	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	14	5.84 mm	0.72 "	18.29 mm		2.54 mm	0.1 in
Sullins Connector Solutions PEC07SFDN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.318 "	8.08 mm	0.1 in	2.54 mm	Solder			2.54 µm	100 µin	0.838 in	21.29 mm	All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7		0.42 in	10.67 mm
Sullins Connector Solutions PEC07SFAN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.318 "	8.08 mm	0.1 in	2.54 mm	Solder			2.54 µm	100 µin	0.538 "	13.67 mm	All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7		0.12 in	3.05 mm
Sullins Connector Solutions PEC07SAGN	Through Hole	125 °C	-65 ░C	3 A	0.1 in	2.54 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.23 in		0.1 in	2.54 mm	Solder			2.54 µm	100 µin	1.05 in	26.67 mm	All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7	5.84 mm	0.72 "	18.29 mm
Sullins Connector Solutions PEC07SBEN	Through Hole Right Angle	125 °C	-65 ░C	3 A	0.14 in	3.56 mm	Male Pin	Square	Board to Board Cable	Unshrouded	UL94 V-0	0.23 in		0.1 in	2.54 mm	Solder	12.7 mm	0.5 in	2.54 µm	100 µin			All	Breakaway Header	1	Black	2.54 çm	100 çin	Push-Pull	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Tin	7	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.91
		10	$ 0.77
		100	$ 0.69
		500	$ 0.57
		1000	$ 0.50
		5000	$ 0.45

Description

General part information

PEC07 Series

Connector Header Through Hole 7 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
