1399.17.0248
ActiveHuber+Suhner, Inc.

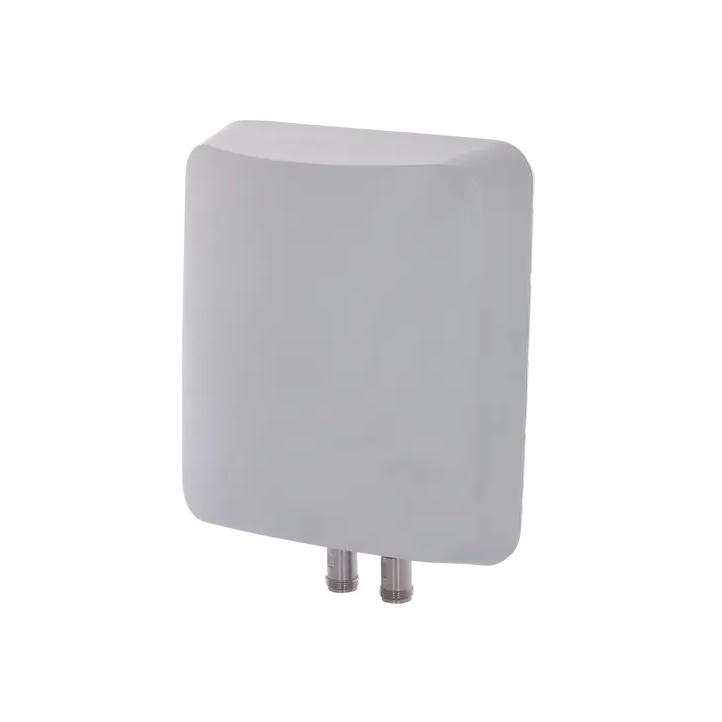

ANTENNA, DIRECTIONAL, 3.8-4.2GHZ, 8.5DBI ROHS COMPLIANT: YES
1399.17.0248
ActiveHuber+Suhner, Inc.
ANTENNA, DIRECTIONAL, 3.8-4.2GHZ, 8.5DBI ROHS COMPLIANT: YES
Description
General part information
1399.17.0248
ANTENNA, DIRECTIONAL, 3.8-4.2GHZ, 8.5DBI ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399.17.0248 |
|---|---|
| Antenna Type | Directional Antenna |
| Frequency (Center/Band) | 2.05GHz, 3.605GHz, 2.495GHz, 4GHz, 1.8075GHz |
| Frequency (Center/Band) - 1 | 1.8075 GHz |
| Frequency (Center/Band) - 2 | 2.05 GHz |
| Frequency (Center/Band) - 3 | 2.495 GHz |
| Frequency (Center/Band) - 4 | 3.605 GHz |
| Frequency (Center/Band) - 5 | 4 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 1.92 GHz |
| Frequency Range (Band 1) Minimum | 1.695 GHz |
| Frequency Range (Band 2) Maximum | 2.18 GHz |
| Frequency Range (Band 2) Minimum | 1.92 GHz |
| Frequency Range (Band 3) Maximum | 2.69 GHz |
| Frequency Range (Band 3) Minimum | 2.3 GHz |
| Frequency Range (Band 4) Maximum | 3.8 GHz |
| Frequency Range (Band 4) Minimum | 3.41 GHz |
| Frequency Range (Band 5) Maximum | 4.2 GHz |
| Frequency Range (Band 5) Minimum | 3.8 GHz |
| Gain | 8.5 dBi, 7 dBi, 7.5 dBi |
| Height (Max) | 3.315 in |
| Ingress Protection | IP66 |
| Mounting Type | Panel Mount |
| Number of Bands | 5 |
| Power - Max | 125 W |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 2 |
