1116194
ActivePhoenix Contact

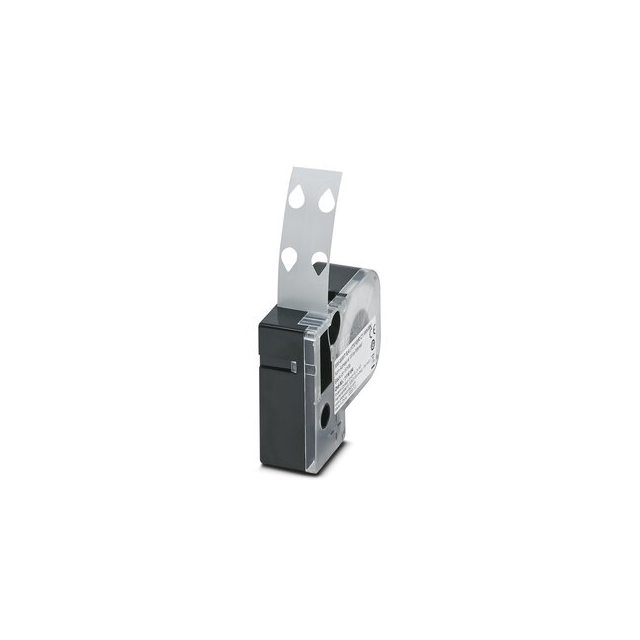

CABLE MARKER, ROLL, WHITE, UNLAB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1116194
ActivePhoenix Contact
CABLE MARKER, ROLL, WHITE, UNLAB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1116194 | MM-WMT Series |
|---|---|---|
| Color | White | White |
| Label Size | - | 0.09 - 0.17 " |
| Label Size | - | 0.16 - 4 mm |
| Label Size | - | 0.04 - 0.12 " |
| Label Size | - | 0.22 - 5.5 mm |
| Label Size [Max] [diameter] | 0.33 " | 0.33 " |
| Label Size [Max] [diameter] | 8.4 mm | 8.4 mm |
| Label Size [Min] [diameter] | 0.2 " | 0.2 " |
| Label Size [Min] [diameter] | 5 mm | 5 mm |
| Label Size [x] | 44.4 mm | 1.35 - 44.4 mm |
| Label Size [x] | 1.75 in | 1.15 - 1.75 " |
| Label Size [y] | 0.41 " | 0.17 - 0.41 " |
| Label Size [y] | 10.4 mm | 0.31 - 10.4 mm |
| Label Type | Standard | Standard |
| Material | Polyester | Polyester |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
MM-WMT Series
CABLE MARKER, ROLL, WHITE, UNLAB
| Part | Label Size [y] | Label Size [x] | Label Size [Max] | Label Size [Min] | Label Size [Min] | Label Size [x] | Label Size [Max] | Label Size [y] | Color | Material | Label Type | Operating Temperature [Min] | Operating Temperature [Max] | Label Size [Min] [diameter] | Label Size [Min] [diameter] | Label Size [Max] [diameter] | Label Size [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1116144 | 0.17 " | 29.3 mm | 0.09 " | 1 mm | 0.04 " | 1.15 " | 2.4 mm | 4.2 mm | White | Polyester | Standard | -40 °C | 120 °C | ||||
Phoenix Contact 1116191 | 0.2 in | 31.4 mm | 0.14 in | 2 mm | 0.08 in | 1.24 in | 3.5 mm | 5 mm | White | Polyester | Standard | -40 °C | 120 °C | ||||
Phoenix Contact 1116193 | 1.35 in, 34.4 mm | 0.16 in, 4 mm | 0.22 in, 5.5 mm | 0.31 ", 8 mm | White | Polyester | Standard | -40 °C | 120 °C | ||||||||
Phoenix Contact 1116192 | 0.24 in | 31.4 mm | 0.17 " | 3 mm | 0.12 in | 1.24 in | 4.2 mm | 6 mm | White | Polyester | Standard | -40 °C | 120 °C | ||||
Phoenix Contact 1116194 | 0.41 " | 44.4 mm | 1.75 in | 10.4 mm | White | Polyester | Standard | -40 °C | 120 °C | 0.2 " | 5 mm | 0.33 " | 8.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.47 | |
| 10 | $ 26.19 | |||
| 50 | $ 24.20 | |||
| 100 | $ 23.13 | |||
| 250 | $ 21.99 | |||
Description
General part information
MM-WMT Series
White Standard Label 1.75" x 0.41" (44.4mm x 10.4mm); Cable O.D. 0.20" ~ 0.33" (5.0mm ~ 8.4mm)
