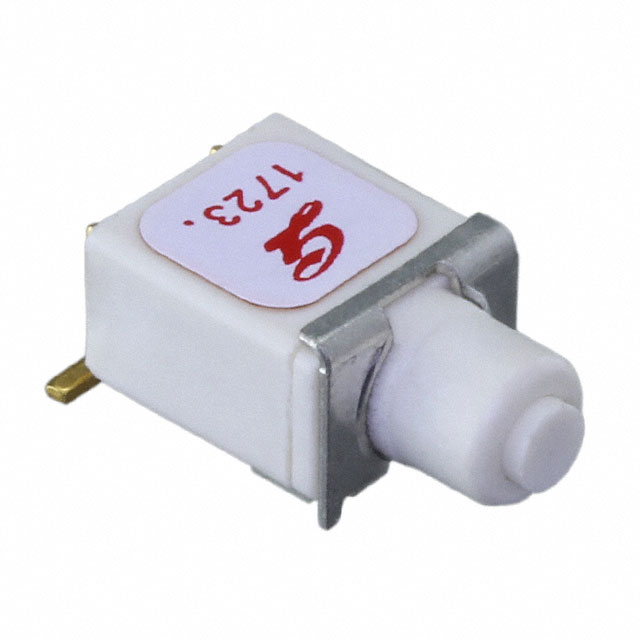

38BM-0-H-3-S

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.4VA 20V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Surface Mount, Right Angle

Technical documentation and resources

Part	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage Rating - DC	Termination Style	Circuit	Mechanical Life	Current Rating (Amps)	Voltage Rating - AC	Color - Actuator/Cap	Switch Function	Actuator Marking	Electrical Life	Actuator Type
Grayhill Inc. 38BM-0-H-3-S	Surface Mount, Right Angle	Sealed - Fully	-30 ░C	85 °C	Standard	20 V	Gull Wing	SPST-NO	80000 Cycles	0.4 VA	20 V	White	Off-Mom	No Marking	80000 Cycles	Flush, Plunger, Round
Grayhill Inc. 38BM-0-H-1-S	Surface Mount, Right Angle	Sealed - Fully	-30 ░C	85 °C	Standard	20 V	Gull Wing	SPST-NO	80000 Cycles	0.4 VA	20 V	White	Off-Mom	No Marking	80000 Cycles	Flush, Plunger, Round
