5452359

Active

Phoenix Contact

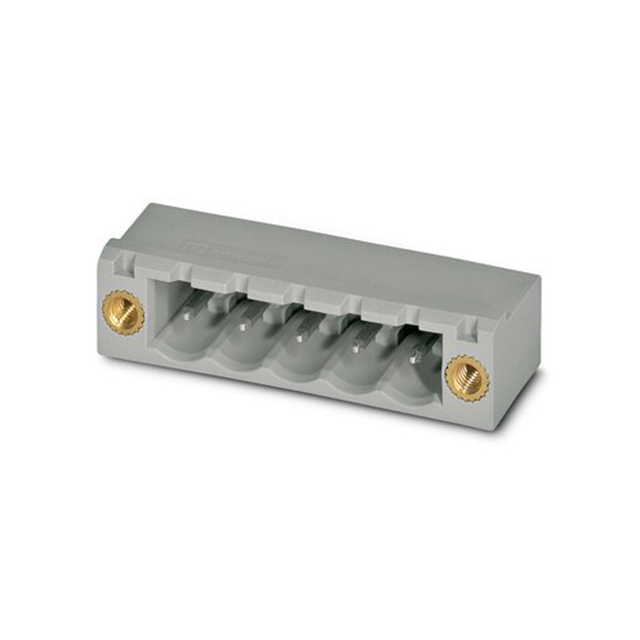

PLUGGABLE TERMINAL BLOCKS BCH-500HF-10 BK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

5452359

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS BCH-500HF-10 BK

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.87
Sager	N/A	1	$ 10.44
		100	$ 6.26
		500	$ 5.70

Description

General part information

BCH Series

Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5452359	BCH Series

Color	Black	Green, Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.4 - 3.5 mm
Contact Tail Length	0.138 in	0.134 - 0.138 in
Current - IEC	12 A	8 - 12 A
Current - UL	-	8 A
Features	Mating Flange	Mating Flange
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	-	Polyamide (PA), Nylon
Insulation Height	8.61 mm	7.25 - 8.61 mm
Insulation Height	0.339 "	0.285 - 0.339 in
Material Flammability Rating	-	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	10	2 - 23 positions
Pitch [x]	5 mm	3.5 - 5 mm
Pitch [x]	0.197 in	0.138 - 0.197 in
Positions Per Level	10	2 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V	160 - 400 V
Voltage - UL	300 V	250 - 300 V

BCH Series

Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER

Part	Voltage - IEC	Housing Material	Number of Positions	Termination Style	Color	Number of Levels	Positions Per Level	Mounting Type	Material Flammability Rating	Current - IEC	Contact Mating Finish	Type	Header Orientation	Pitch [x]	Pitch [x]	Voltage - UL	Current - UL	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Features
Phoenix Contact 5445630	400 V	Polyamide (PA), Nylon	22 positions	Solder	Green	1	22	Through Hole	UL94 V-0	12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V
Phoenix Contact 5441362	320 V	Polyamide (PA), Nylon	4	Solder	Green	1	4	Through Hole	UL94 V-0	8 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	300 V	8 A	3.4 mm	0.134 in	0.285 in	7.25 mm
Phoenix Contact 5452359	320 V		10	Solder	Black	1	10	Through Hole		12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V		3.5 mm	0.138 in	0.339 "	8.61 mm	Mating Flange
Phoenix Contact 5452350	160 V		20	Solder	Black	1	20	Through Hole		8 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.81 mm	0.15 in	300 V	8 A	3.4 mm	0.134 in	0.291 in	7.4 mm	Mating Flange
Phoenix Contact 5452313	160 V		2	Solder	Black	1	2	Through Hole		8 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	250 V	8 A	3.4 mm	0.134 in	0.291 in	7.4 mm	Mating Flange
Phoenix Contact 5452056	320 V		12	Solder	Black	1	12	Through Hole		12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V		3.5 mm	0.138 in	0.339 "	8.61 mm
Phoenix Contact 5445287	400 V	Polyamide (PA), Nylon		Solder	Green	1	5	Through Hole	UL94 V-0	12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V		3.5 mm	0.138 in	0.339 "	8.61 mm	Mating Flange
Phoenix Contact 5445504	400 V	Polyamide (PA), Nylon	9	Solder	Green	1	9	Through Hole	UL94 V-0	12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V
Phoenix Contact 5445643	400 V	Polyamide (PA), Nylon	23	Solder	Green	1	23	Through Hole	UL94 V-0	12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V
Phoenix Contact 5452352	320 V			Solder	Black	1	3	Through Hole		12 A	Tin	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	5 mm	0.197 in	300 V		3.5 mm	0.138 in	0.339 "	8.61 mm	Mating Flange
