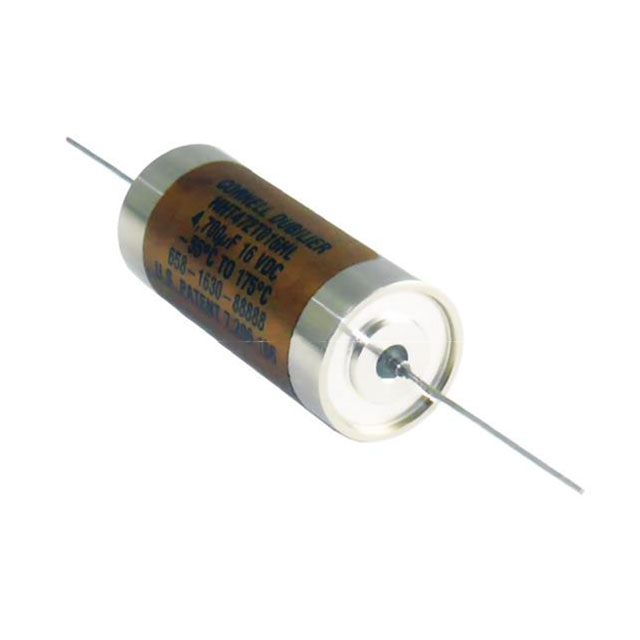

HHT222P030HJ0
ActiveCornell Dubilier Knowles
CAP ALUM 2200UF 30V AXIAL TH
HHT222P030HJ0
ActiveCornell Dubilier Knowles
CAP ALUM 2200UF 30V AXIAL TH
Description
General part information
HHT222P030HJ0
2200 µF 30 V Aluminum Electrolytic Capacitors Axial, Can 90mOhm @ 120Hz 2000 Hrs @ 175°C
Technical Specifications
Parameters and characteristics for this part
| Specification | HHT222P030HJ0 |
|---|---|
| Applications | High Temperature Reflow |
| Capacitance | 2200 ĄF |
| ESR (Equivalent Series Resistance) | 90 mOhm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 3.115 A, 8.9 A |
| Size / Dimension Diameter | 0.866 in |
| Size / Dimension Length | 1.772 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
