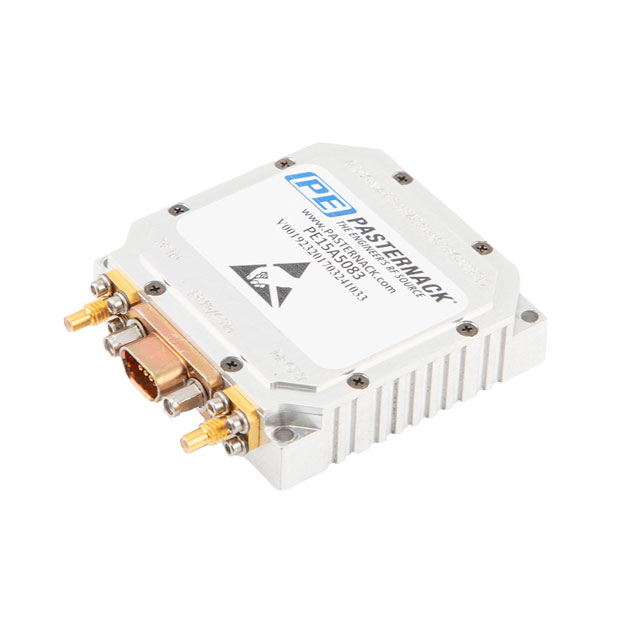

PE15A5083
ActivePasternack
IC RF AMP GPS 1GHZ-2.5GHZ MODULE
PE15A5083
ActivePasternack
IC RF AMP GPS 1GHZ-2.5GHZ MODULE
Description
General part information
PE15A5083
RF Amplifier IC General Purpose 1GHz ~ 2.5GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A5083 |
|---|---|
| Current - Supply | 650 mA |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 1 GHz |
| Gain | 41 dB |
| P1dB | 33 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Test Frequency | 2.5 GHz |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 26 V |
