1406412
ActivePhoenix Contact

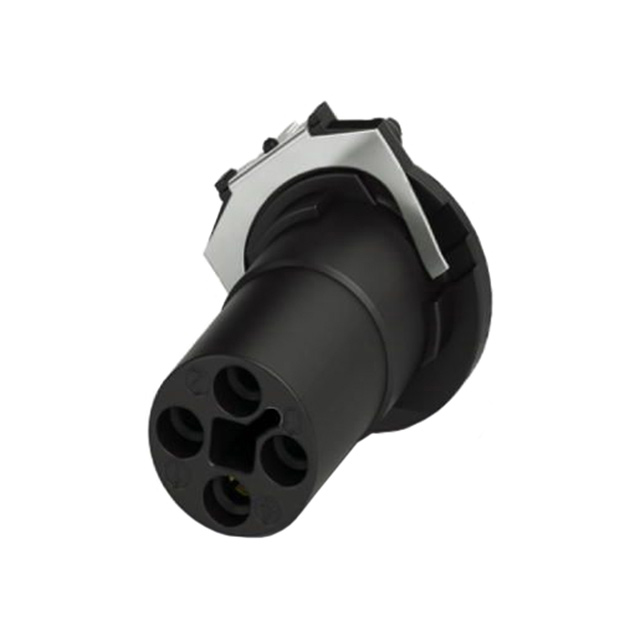

CONNECTOR, INSERT, SOCKET, 4POS
1406412
ActivePhoenix Contact
CONNECTOR, INSERT, SOCKET, 4POS
Description
General part information
1406412
4 (3 Power + PE) Position Circular Connector Insert, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1406412 |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 12 A |
| Features | Requires Shell, Board Guide, Insert Only |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | T |
| Position Types | Power, PE |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 63 V |
