RP154L025A-E2
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR 3V/3V DFN1216-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP154L025A-E2
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR 3V/3V DFN1216-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP154L025A-E2 |
|---|---|
| Control Features | Enable |
| Current - Quiescent (Iq) | 75 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

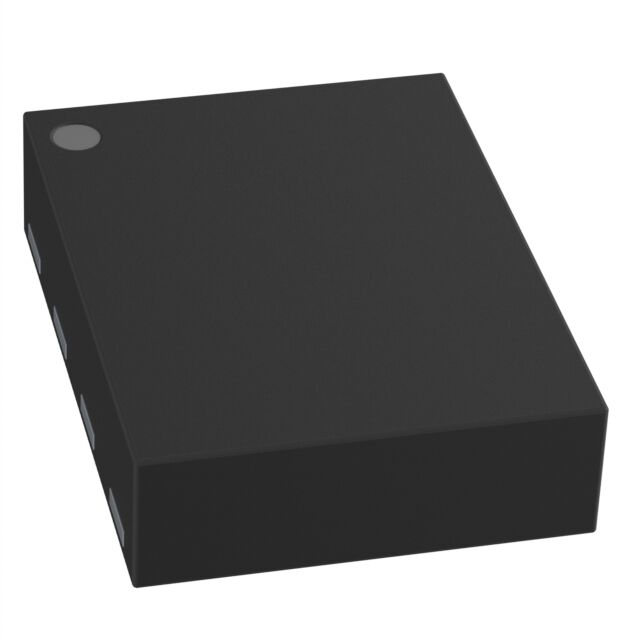

| Package / Case | 8-XFDFN Exposed Pad |
| Protection Features | Over Current |
| PSRR | 75 dB |
| Supplier Device Package | DFN1216-8 |
| Voltage - Input (Max) [Max] | 5.25 V |
| Voltage - Output (Min/Fixed) | 3 V |
| Voltage - Output (Min/Fixed) | 3 V |
| Voltage Dropout (Max) | 0.29 V |
| Voltage Dropout (Max) | 0.29 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.52 | |
| 10000 | $ 0.51 | |||
| 15000 | $ 0.51 | |||
Description
General part information
RP154L025A-E2
Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA DFN1216-8
