02S141-272E4

Active

Rosenberger

PRECISION 2.92 STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 STRAIGHT PLUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02S141-272E4	02S141 Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Beryllium Copper, Stainless Steel
Cable Group	-	UT-47
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.92 mm
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polystyrene (PS)	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz	40 - 43.5 GHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

PRECISION 2.92 STRAIGHT PLUG

Part	Dielectric Material	Impedance	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Connector Style	Center Contact Material	Shield Termination	Body Material	Housing Color	Number of Ports	Body Finish	Frequency - Max [Max]	Center Contact Plating	Connector Type	Mounting Type	Voltage Rating	Cable Group
Rosenberger 02S141-272E4	Polystyrene (PS)	50 Ohms	500	85 °C	-40 °C	Solder	2.92 mm	Beryllium Copper	Solder	Beryllium Copper	Gold	1	Gold	40 GHz	Gold	Male Pin, Plug	Free Hanging (In-Line)	250 VDC
Rosenberger 02S141-270L5	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	50 Ohms	500	85 °C	-40 °C	Solder	2.92 mm	Brass	Solder	Beryllium Copper	Gold	1	Gold	40 GHz	Gold	Male Pin, Plug	Free Hanging (In-Line)	250 VDC	UT-47
Rosenberger 02S141-271E4	Polystyrene (PS)	50 Ohms	500	85 °C	-40 °C	Solder	2.92 mm	Beryllium Copper	Solder	Stainless Steel	Silver	1		43.5 GHz	Gold	Male Pin, Plug	Free Hanging (In-Line)	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 67.31

General part information

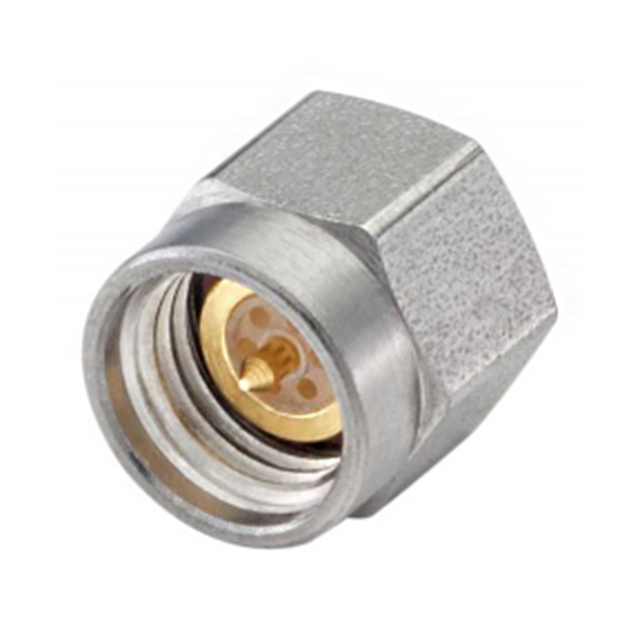

2.92mm Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
