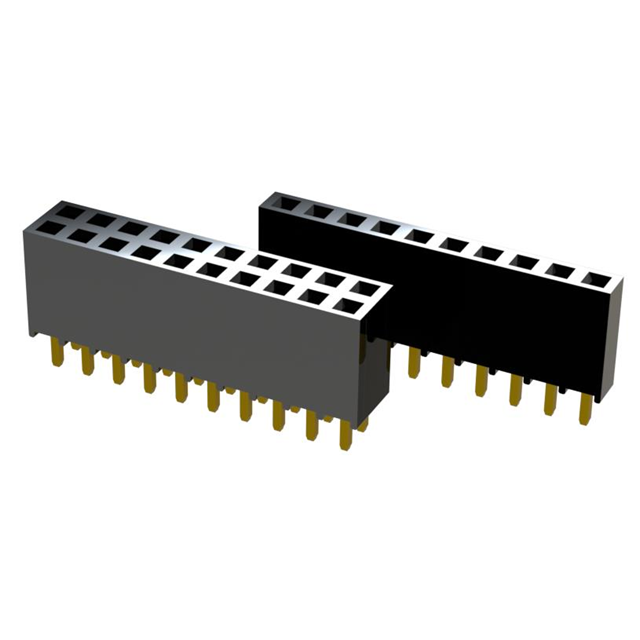

SSHQ-123-D-06-GT-LF

Active

Major League Electronics

SOCKET WITH A .190 TAIL 23POS

Search across all available documentation for this part.

Active

Major League Electronics

SOCKET WITH A .190 TAIL 23POS

Technical Specifications

Parameters and characteristics for this part

Specification	SSHQ-123-D-06-GT-LF

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	4.83 mm
Contact Length - Post	0.19 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.48 mm
Insulation Height	0.334 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mounting Type	Through Hole
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SOCKET WITH A .190 TAIL 23POS

Part	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Rows	Fastening Type	Contact Finish - Post	Contact Finish - Mating	Insulation Color	Contact Shape	Contact Type	Connector Type	Mounting Type	Number of Positions	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded
Major League Electronics SSHQ-123-D-06-GT-LF	3 A	Solder	-40 °C	105 ░C	8.48 mm	0.334 in	10 çin	0.25 çm	Nylon 6T, Polyamide (PA6T)	4.83 mm	0.19 in	2	Push-Pull	Tin	Gold	Black	Square	Forked	Socket	Through Hole	46	Phosphor Bronze	2.54 mm	0.1 in	0.1 in	2.54 mm	All
