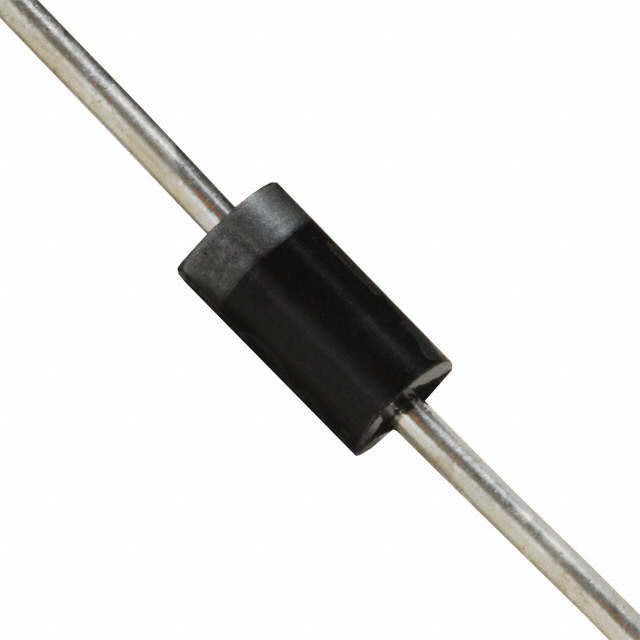

UF4001 TR

Obsolete

Central Semiconductor Corp

DIODE GEN PURP 50V 1A DO41

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

DIODE GEN PURP 50V 1A DO41

Technical Specifications

Parameters and characteristics for this part

Specification	UF4001 TR

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE GEN PURP 50V 1A DO41

Part	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Current - Reverse Leakage @ Vr	Speed	Mounting Type	Supplier Device Package	Reverse Recovery Time (trr)
Central Semiconductor Corp UF4001 TR	20 pF	150 °C	-65 C	50 V	1 A	1 V	Axial, DO-204AL, DO-41	Standard	10 µA	200 mA, 500 ns	Through Hole	DO-41	50 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 50 V 1A Through Hole DO-41
