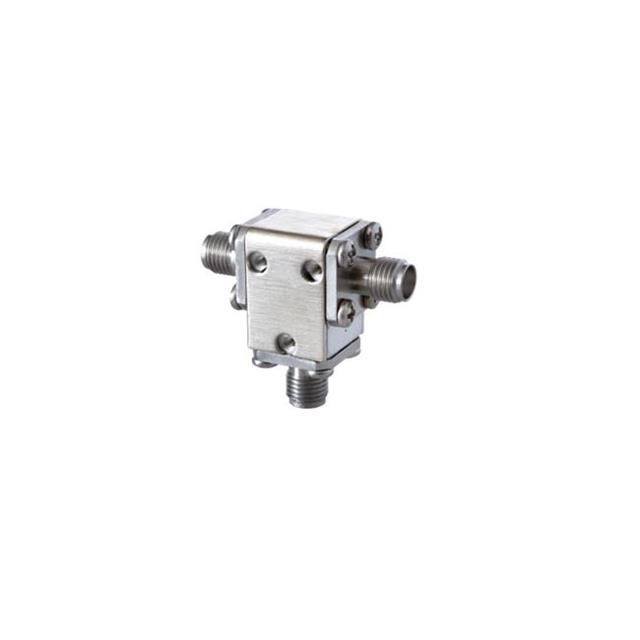

DSC1722-4
ActiveDiTom Microwave
SPACE CIRCULATOR 17.3-22 GHZ
DSC1722-4
ActiveDiTom Microwave
SPACE CIRCULATOR 17.3-22 GHZ
Description
General part information
DSC1722-4
SPACE CIRCULATOR 17.3-22 GHZ
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC1722-4 |
|---|---|
| Connector Type | SMA-MALE, SMA-FEMALE |
| Frequency (Max) | 22 GHz |
| Frequency (Min) | 27 GHz |
| Insertion Loss (Max) | 0.6 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Average Forward | 10 W |
| Type | Circulator |
| VSWR | 1.25 |
