AST0410604
ActiveMETZ CONNECT USA Inc.

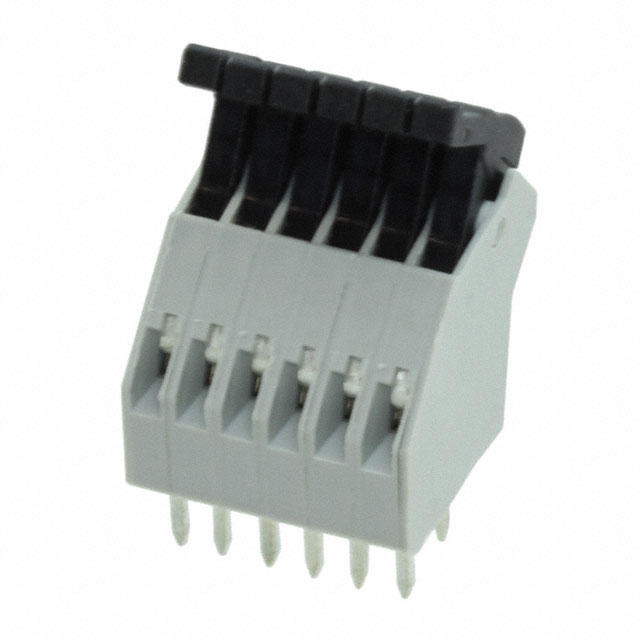

TERM BLOCK 6POS 45DEG 2.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AST0410604
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 6POS 45DEG 2.5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AST0410604 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Gray |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 8 A |
| Features | Lever Actuated |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Positions Per Level | 6 |
| Voltage | 150 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 17.5 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AST041 Series
6 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.098" (2.50mm) Through Hole
