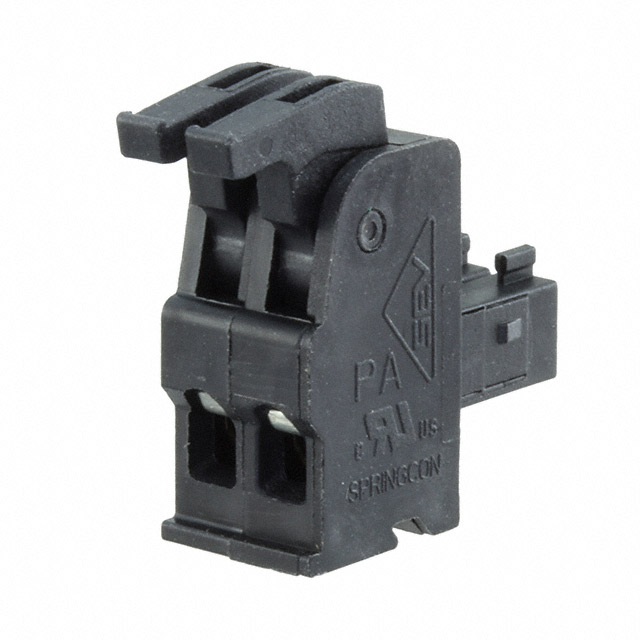

ASP0450222

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ASP0450222

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ASP0450222

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	10 A
Features	Lever Actuated, Retention Latches (Non-Wire Side)
Housing Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.61 in
Insulation Height	15.49 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

ASP045 Series

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Mounting Type	Number of Levels	Contact Mating Finish	Housing Material	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Material	Type	Number of Positions	Current - UL	Features	Pitch [x]	Pitch [x]	Positions Per Level
METZ CONNECT USA Inc. ASP0450722	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	7	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	7
METZ CONNECT USA Inc. ASP0451022	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	10	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	10
METZ CONNECT USA Inc. ASP0451222	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	12	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	12
METZ CONNECT USA Inc. ASP0450622	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	6	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	6
METZ CONNECT USA Inc. ASP0450822	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	8	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	8
METZ CONNECT USA Inc. ASP0451422	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	14	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	14
METZ CONNECT USA Inc. ASP0452422	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	24	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in
METZ CONNECT USA Inc. ASP0450422	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	4	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	4
METZ CONNECT USA Inc. ASP0450922	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	9	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	9
METZ CONNECT USA Inc. ASP0451122	28 AWG	16 AWG	0.61 in	15.49 mm	Black	UL94 V-0	-40 °C	105 ░C	300 V	Free Hanging (In-Line)	1	Tin	Polyamide (PA46) Nylon 4/6	Screwless - Spring Cage Tension Clamp	1.5 mm²	0.08 mm²	Copper Alloy	Plug Female Sockets	11	10 A	Lever Actuated Retention Latches (Non-Wire Side)	5 mm	0.197 in	11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.15
		10	$ 1.28
		25	$ 1.11
		50	$ 1.02
		100	$ 0.95
		250	$ 0.88
		500	$ 0.85
		1000	$ 0.82
		5000	$ 0.78

Description

General part information

ASP045 Series

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
