826469-6

Active

TE Connectivity AMP Connectors

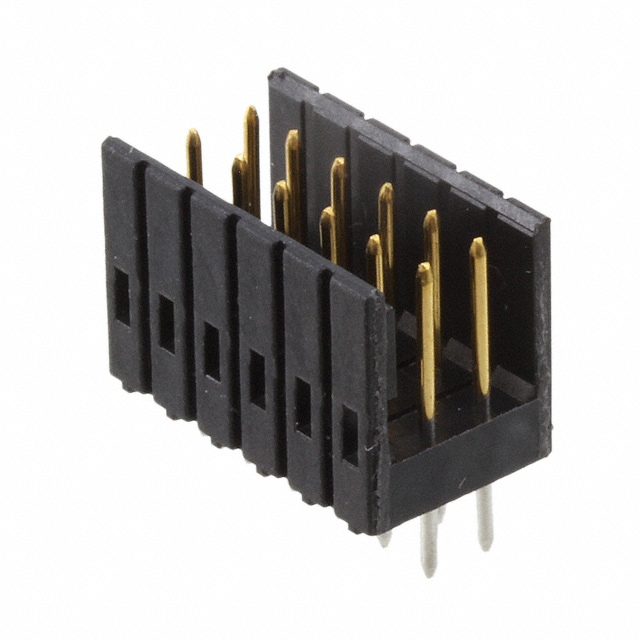

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826469-6

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826469-6	826469 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Black	Black
Insulation Height	10 mm	10 mm
Insulation Height	0.394 "	0.394 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	12	8 - 34
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826469 Series

CONN HEADER VERT 18POS 2.54MM

Part	Connector Type	Number of Rows	Insulation Material	Number of Positions	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Style	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Contact Shape	Insulation Color	Contact Material	Contact Length - Post	Contact Length - Post [x]	Contact Type	Shrouding	Material Flammability Rating
TE Connectivity AMP Connectors 826469-9	Header	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	18	Solder	Through Hole	0.099 µm	3.9 µin	3 µm	118.1 µin	105 ░C	-55 °C	Board to Board, Cable	0.1 in	2.54 mm	10 mm	0.394 "	2.54 mm	0.1 in	Gold	Tin	All	Latch Holder	Square	Black	Phosphor Bronze	3.2 mm	0.126 in	Male Pin	Shrouded - 2 Wall	UL94 V-0
TE Connectivity AMP Connectors 1-826469-0	Header	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	20	Solder	Through Hole	0.099 µm	3.9 µin	3 µm	118.1 µin	105 ░C	-55 °C	Board to Board, Cable	0.1 in	2.54 mm	10 mm	0.394 "	2.54 mm	0.1 in	Gold	Tin	All	Latch Holder	Square	Black	Phosphor Bronze	3.2 mm	0.126 in	Male Pin	Shrouded - 2 Wall	UL94 V-0
TE Connectivity AMP Connectors 826469-4	Header	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	8	Solder	Through Hole	0.099 µm	3.9 µin	3 µm	118.1 µin	105 ░C	-55 °C	Board to Board, Cable	0.1 in	2.54 mm	10 mm	0.394 "	2.54 mm	0.1 in	Gold	Tin	All	Latch Holder	Square	Black	Phosphor Bronze	3.2 mm	0.126 in	Male Pin	Shrouded - 2 Wall	UL94 V-0
TE Connectivity AMP Connectors 1-826469-7	Header	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	34	Solder	Through Hole	0.099 µm	3.9 µin	3 µm	118.1 µin	105 ░C	-55 °C	Board to Board, Cable	0.1 in	2.54 mm	10 mm	0.394 "	2.54 mm	0.1 in	Gold	Tin	All	Latch Holder	Square	Black	Phosphor Bronze	3.2 mm	0.126 in	Male Pin	Shrouded - 2 Wall	UL94 V-0
TE Connectivity AMP Connectors 826469-6	Header	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	12	Solder	Through Hole	0.099 µm	3.9 µin	3 µm	118.1 µin	105 ░C	-55 °C	Board to Board, Cable	0.1 in	2.54 mm	10 mm	0.394 "	2.54 mm	0.1 in	Gold	Tin	All	Latch Holder	Square	Black	Phosphor Bronze	3.2 mm	0.126 in	Male Pin	Shrouded - 2 Wall	UL94 V-0
TE Connectivity AMP Connectors 826469-7	Header	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	14	Solder	Through Hole	0.099 µm	3.9 µin	3 µm	118.1 µin	105 ░C	-55 °C	Board to Board, Cable	0.1 in	2.54 mm	10 mm	0.394 "	2.54 mm	0.1 in	Gold	Tin	All	Latch Holder	Square	Black	Phosphor Bronze	3.2 mm	0.126 in	Male Pin	Shrouded - 2 Wall	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.56
		10	$ 2.95
		100	$ 2.44
		500	$ 2.14
		1000	$ 2.03
		5000	$ 1.79

Description

General part information

826469 Series

Connector Header Through Hole 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources
