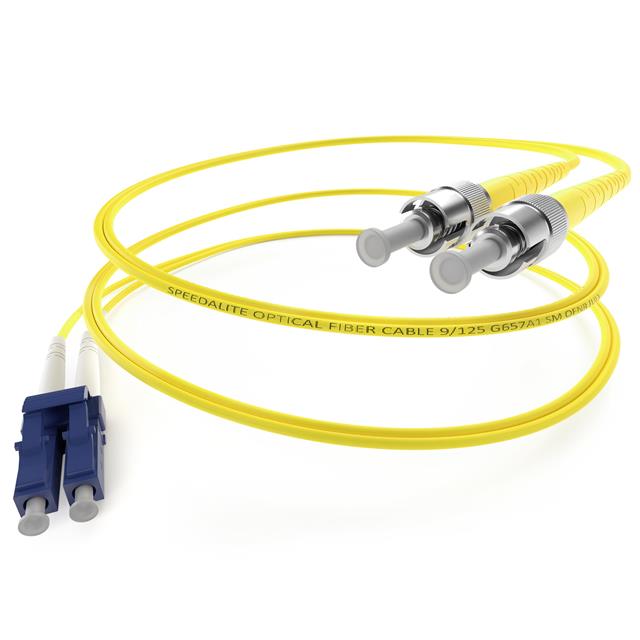

FJ9LCST-20M

Active

UNC Group

SINGLEMODE LC TO ST FIBER 20M

Search across all available documentation for this part.

Active

UNC Group

SINGLEMODE LC TO ST FIBER 20M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FJ9LCST-20M	FJ9LCST Series

1st Connector	LC Duplex	LC Duplex
2nd Connector	ST (2)	ST (2)
Bend Radius [radius]	10 mm	10 mm
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Cable Type	Twin Zip, Bend Insensitive Fiber (BIF)	Twin Zip, Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue, Yellow	Blue, Yellow
Features	Dust Cap, Zipcord, Riser	Dust Cap, Zipcord, Riser
Fiber Type	9/125	9/125
Insertion Loss	0.2 dB	0.08 - 0.2 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	5 m
Length - Overall	-	16.4 ft
Length - Overall [x]	65.6 ft	23 - 82 ft
Length - Overall [x]	20 m	7 - 25 m
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Ratings	OFNR	OFNR
Return Loss	55 dB	55 dB
Type	Singlemode, OS2, Duplex	Singlemode, OS2, Duplex

SINGLEMODE LC TO ST FIBER 5M

Part	Fiber Type	Color - Connectors	Cable Diameter [diameter]	Cable Diameter [diameter]	Insertion Loss	Ratings	Type	2nd Connector	Color - Cable	Cable Type	Features	Jacket (Insulation) Material	1st Connector	Length - Overall	Length - Overall	Length - Overall [x]	Length - Overall [x]	Return Loss	Operating Temperature [Min]	Operating Temperature [Max]	Bend Radius [radius]
UNC Group FJ9LCST-05M	9/125	Blue, Yellow	2 mm	0.08 in	0.08 dB	OFNR	Duplex, OS2, Singlemode	ST (2)	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	Poly-Vinyl Chloride (PVC)	LC Duplex	5 m	16.4 ft
UNC Group FJ9LCST-07M	9/125	Blue, Yellow	2 mm	0.08 in	0.08 dB	OFNR	Duplex, OS2, Singlemode	ST (2)	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	Poly-Vinyl Chloride (PVC)	LC Duplex			7 m	23 ft
UNC Group FJ9LCST-25M	9/125	Blue, Yellow	2 mm	0.08 in	0.2 dB	OFNR	Duplex, OS2, Singlemode	ST (2)	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	Poly-Vinyl Chloride (PVC)	LC Duplex			25 m	82 ft	55 dB	-20 C	60 °C	10 mm
UNC Group FJ9LCST-20M	9/125	Blue, Yellow	2 mm	0.08 in	0.2 dB	OFNR	Duplex, OS2, Singlemode	ST (2)	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	Poly-Vinyl Chloride (PVC)	LC Duplex			20 m	65.6 ft	55 dB	-20 C	60 °C	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic LC Duplex To ST (2) 9/125 65.6' (20.0m)
