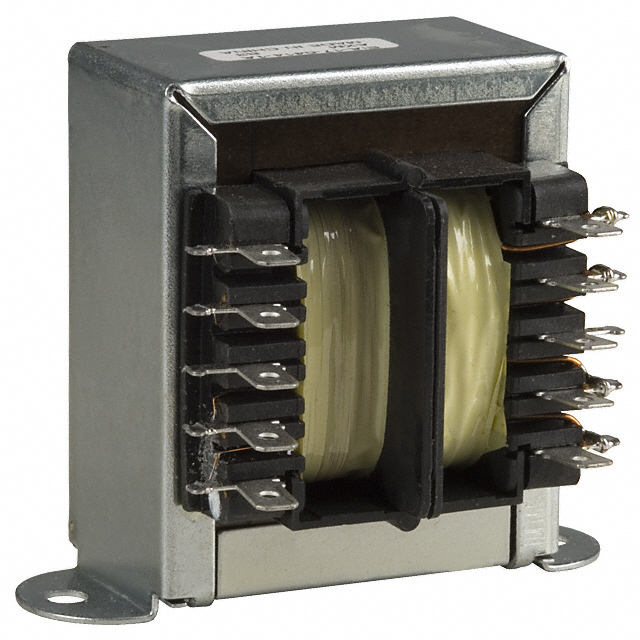

VPS28-1500-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 43VA CHAS MT
VPS28-1500-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 43VA CHAS MT
Description
General part information
VPS28-1500-B
PWR XFMR LAMINATED 43VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | VPS28-1500-B |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 3 A |
| Current - Output (Max) Series | 1.5 A |
| Height - Seated (Max) | 68.33 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 43 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 58.67 mm |
| Size / Dimension Width | 2 in |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 14 V |
| Voltage - Secondary (Full Load) (Series) | 28 V |
| Weight | 1.6 lbs |
