FMCA2565-24
ActiveFairview Microwave
COAX CBL 7/16 DIN TO 7/16 DIN
FMCA2565-24
ActiveFairview Microwave
COAX CBL 7/16 DIN TO 7/16 DIN
Description
General part information
FMCA2565-24

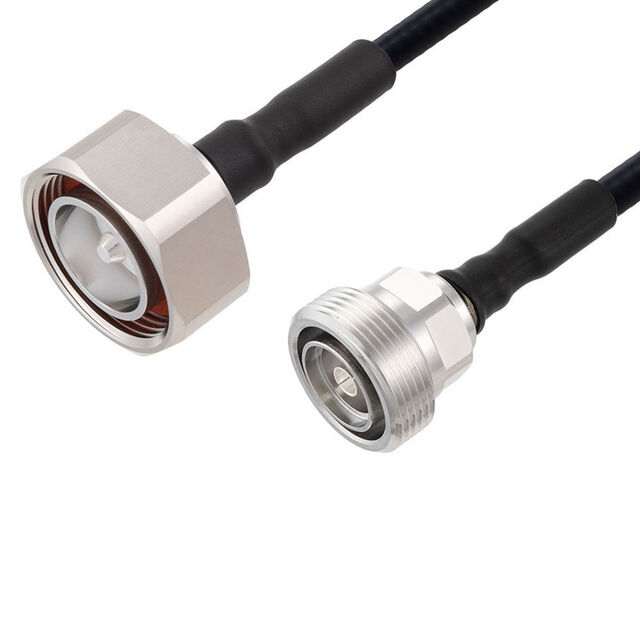

Cable Assembly Coaxial 7/16 DIN to 7/16 DIN SPO-250 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2565-24 |
|---|---|
| 1st Connector | 7/16 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 7/16 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPO |
| Cable Type Size | 250 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to 7/16 DIN |
