6282-7SG-516
ActiveConxall/Switchcraft

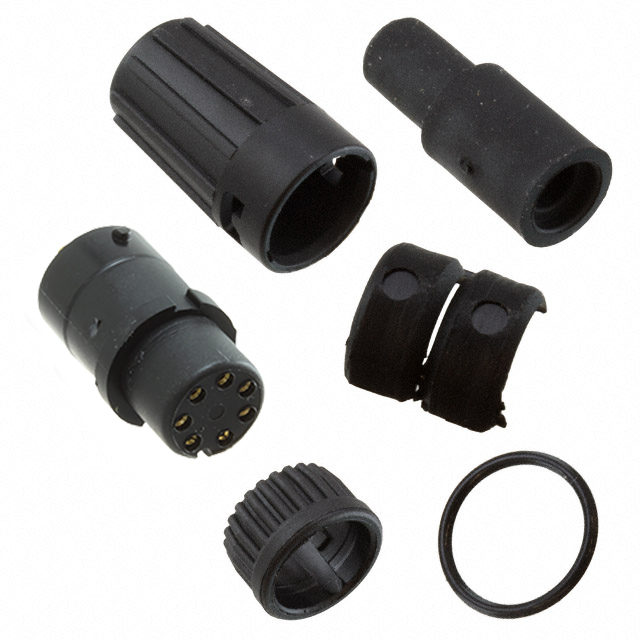

CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6282-7SG-516
ActiveConxall/Switchcraft
CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6282-7SG-516 | 6282-7SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 0.21 - 0.23 in |
| Cable Opening | - | 0.19 - 0.21 in |
| Cable Opening | - | 4.83 - 5.33 mm |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening [Max] [custom] | 0.18 in | 0.18 - 0.2 in |
| Cable Opening [Max] [custom] | 4.57 mm | 4.57 - 5.08 mm |
| Cable Opening [Min] [custom] | 0.16 in | 0.16 - 0.18 in |
| Cable Opening [Min] [custom] | 4.06 mm | 4.06 - 4.57 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
6282-7SG Series
CONN PLUG FMALE 7P GOLD SLDR CUP
| Part | Contact Finish - Mating | Features | Orientation | Number of Positions | Cable Opening [custom] | Cable Opening [custom] | Voltage Rating | Ingress Protection | Applications | Mounting Type | Primary Material | Connector Type | Color | Fastening Type | Current Rating (Amps) | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Backshell Material, Plating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6282-7SG-315 | Gold | Backshell | Keyed | 7 | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | 600 V | Weathertight | Automotive, Communication Systems, Instrumentation | Free Hanging (In-Line) | Plastic | Female Sockets, Plug | Black | Bayonet Lock | Varies by Wire Gauge | Brass | -40 °C | 115 °C | Unshielded | Nylon, Polyamide (PA) | |||||||||
Conxall/Switchcraft 6282-7SG-519 | Gold | Backshell | Keyed | 7 | 600 V | Weathertight | Automotive, Communication Systems, Instrumentation | Free Hanging (In-Line) | Plastic | Female Sockets, Plug | Black | Bayonet Lock | Varies by Wire Gauge | Brass | -40 °C | 115 °C | Unshielded | Nylon, Polyamide (PA) | 0.21 in | 0.19 in | 4.83 mm | 5.33 mm | |||||||
Conxall/Switchcraft 6282-7SG-321 | Gold | Backshell | Keyed | 7 | 600 V | Weathertight | Automotive, Communication Systems, Instrumentation | Free Hanging (In-Line) | Plastic | Female Sockets, Plug | Black | Bayonet Lock | Varies by Wire Gauge | Brass | -40 °C | 115 °C | Unshielded | Nylon, Polyamide (PA) | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm | |||||||
Conxall/Switchcraft 6282-7SG-318 | Gold | Backshell | Keyed | 7 | 600 V | Weathertight | Automotive, Communication Systems, Instrumentation | Free Hanging (In-Line) | Plastic | Female Sockets, Plug | Black | Bayonet Lock | Varies by Wire Gauge | Brass | -40 °C | 115 °C | Unshielded | Nylon, Polyamide (PA) | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 6282-7SG-516 | Gold | Backshell | Keyed | 7 | 600 V | Weathertight | Automotive, Communication Systems, Instrumentation | Free Hanging (In-Line) | Plastic | Female Sockets, Plug | Black | Bayonet Lock | Varies by Wire Gauge | Brass | -40 °C | 115 °C | Unshielded | Nylon, Polyamide (PA) | 4.06 mm | 0.16 in | 0.18 in | 4.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.31 | |
| 10 | $ 16.41 | |||
| 25 | $ 15.39 | |||
| 50 | $ 14.65 | |||
| 100 | $ 13.41 | |||
| 300 | $ 12.91 | |||
| 500 | $ 12.46 | |||
Description
General part information
6282-7SG Series
7 Position Circular Connector Plug, Female Sockets Solder Cup
