Description
General part information

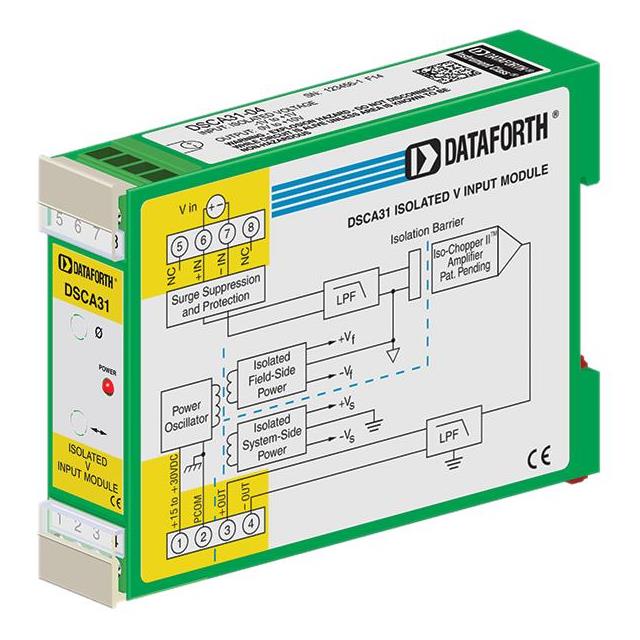

DSCA31-04
SIGNAL CONDITIONER V-IN DIN RAIL
Technical Specifications
Parameters and characteristics for this part
| Specification | DSCA31-04 |
|---|---|
| Input Range Types | Voltage, Current |
| Input Type | Voltage |
| Input Voltage Range (Maximum) | 1 V |
| Input Voltage Range (Minimum) | -1 V |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Voltage |
| Output Voltage Range (Max) | 10 V |
| Output Voltage Range (Min) | 0 V |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 15 VDC |
