2450DP14B7200002T
ActiveJohanson Technology Inc.
MINI PASSIVE RF DIPLEXER 2.4/7GH
2450DP14B7200002T
ActiveJohanson Technology Inc.
MINI PASSIVE RF DIPLEXER 2.4/7GH
Description
General part information
2450DP14B7200002T

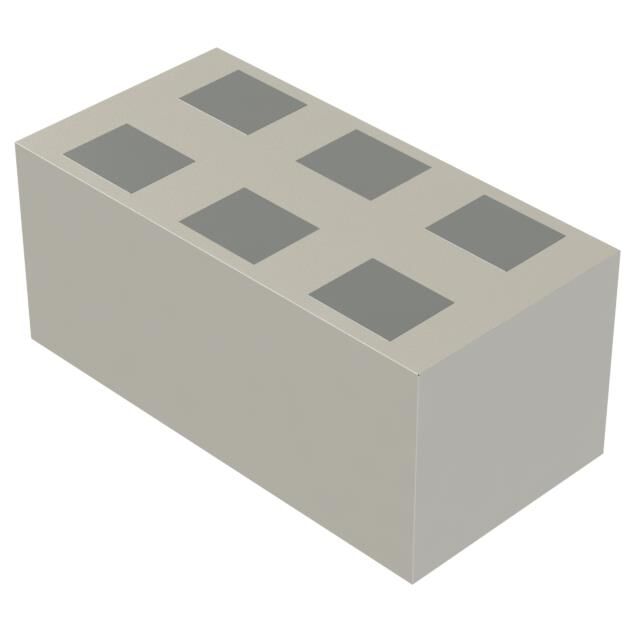

RF Diplexer 2.4GHz ~ 2.5GHz / 6.2GHz ~ 8.2GHz 0603 (1608 Metric), 6 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 2450DP14B7200002T |
|---|---|
| Frequency Bands (High) Maximum | 8.2 GHz |
| Frequency Bands (High) Minimum | 6.2 GHz |
| Frequency Bands (Low) Maximum | 2.5 GHz |
| Frequency Bands (Low) Minimum | 2.4 GHz |
| High Band Attenuation (Min) | 22 dB |
| Low Band Attenuation (Min) | 20 dB |
| Mounting Type | Surface Mount |
| Package Name | 0603 |
| Pad Count | 6 PC Pad |
| Return Loss (High Band) | 10 dB |
| Return Loss (Low Band) | 10 dB |
| Type | Diplexer |
