RLC73K2BR909FTD
ActiveTE Connectivity AMP Connectors

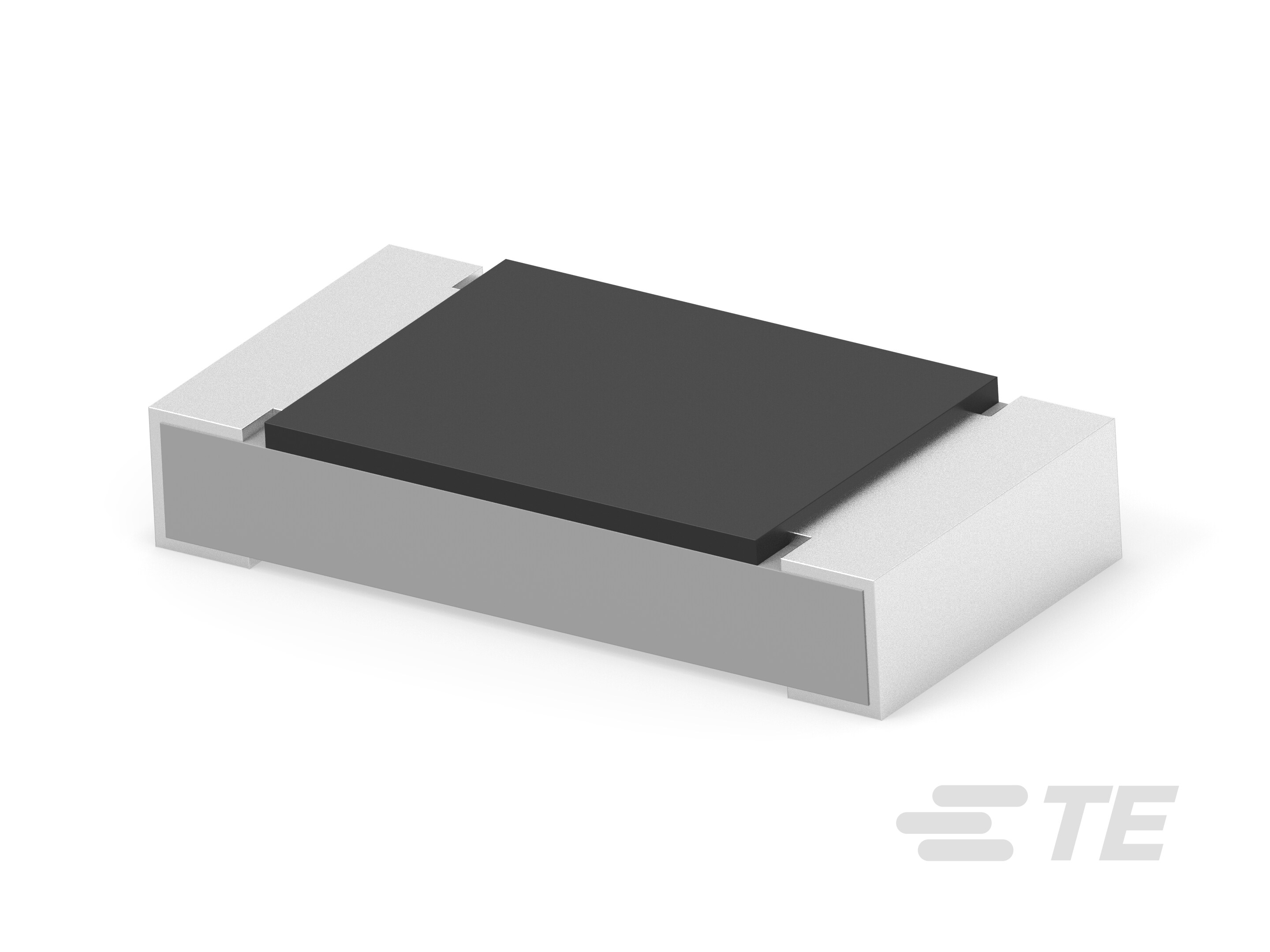

SMD CURRENT SENSE RESISTOR, 0.909 OHM, RLC73 SERIES, 1206 [3216 METRIC], 250 MW, ± 1%, THICK FILM
RLC73K2BR909FTD
ActiveTE Connectivity AMP Connectors
SMD CURRENT SENSE RESISTOR, 0.909 OHM, RLC73 SERIES, 1206 [3216 METRIC], 250 MW, ± 1%, THICK FILM
Description
General part information
RLC73K2BR909FTD
SMD CURRENT SENSE RESISTOR, 0.909 OHM, RLC73 SERIES, 1206 [3216 METRIC], 250 MW, ± 1%, THICK FILM
Technical Specifications
Parameters and characteristics for this part
| Specification | RLC73K2BR909FTD |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.026 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 909 mOhms |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.061 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
