SDS680R-684M

Active

Delevan

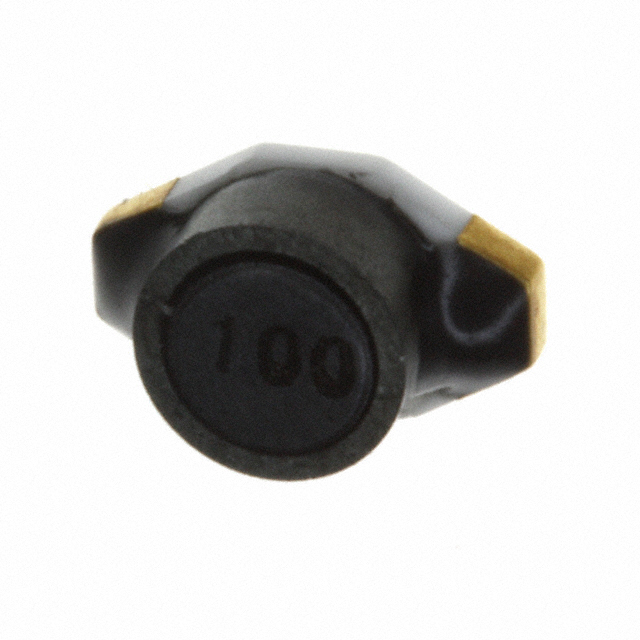

FIXED IND 680UH 180MA 2.2OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDS680R-684M

Active

Delevan

FIXED IND 680UH 180MA 2.2OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDS680R-684M	SDS680R Series

Current Rating (Amps)	0.18 A	0.18 - 800 mA
DC Resistance (DCR)	-	4.2 - 480 Ohm
DC Resistance (DCR) [Max]	2.2 Ohm	1.8 - 770 mOhm
Frequency - Self Resonant	3 MHz	1 - 800 MHz
Inductance	680 µH	1 - 680 mH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	6.6 mm	6.6 mm
Size / Dimension [x]	0.26 in	0.26 in
Size / Dimension [y]	4.45 mm	4.45 mm
Size / Dimension [y]	0.175 in	0.175 in
Tolerance	20 %	20 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

SDS680R Series

FIXED IND 1.5MH 120MA 4.2OHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Inductance	Shielding	Package / Case	Tolerance	Current Rating (Amps)	Frequency - Self Resonant	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	DC Resistance (DCR)	Type	DC Resistance (DCR) [Max]
Delevan SDS680R-155M	85 °C	-40 °C	Ferrite	1.5 mH	Shielded	Nonstandard	20 %	120 mA	2 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount	4.2 Ohm	Drum Core, Wirewound
Delevan SDS680R-103M	85 °C	-40 °C	Ferrite	10 µH	Shielded	Nonstandard	20 %	1 A	38 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound	75 mOhm
Delevan SDS680R-472M	85 °C	-40 °C	Ferrite	4.7 ÁH	Shielded	Nonstandard	20 %	1.4 A	105 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound
Delevan SDS680R-105M	85 °C	-40 °C	Ferrite	1 mH	Shielded	Nonstandard	20 %	150 mA	2 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound	3.4 Ohm
Delevan SDS680R-104M	85 °C	-40 °C	Ferrite	100 µH	Shielded	Nonstandard	20 %	300 mA	10 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount	480 mOhm	Drum Core, Wirewound
Delevan SDS680R-473M	85 °C	-40 °C	Ferrite	47 µH	Shielded	Nonstandard	20 %	0.5 A	20 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound	230 mOhm
Delevan SDS680R-682M	85 °C	-40 °C	Ferrite	6.8 µH	Shielded	Nonstandard	20 %	1.2 A	50 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound	65 mOhm
Delevan SDS680R-683M	85 °C	-40 °C	Ferrite	68 µH	Shielded	Nonstandard	20 %	400 mA	15 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount	290 mOhm	Drum Core, Wirewound
Delevan SDS680R-224M	85 °C	-40 °C	Ferrite	220 µH	Shielded	Nonstandard	20 %	0.22 A	6 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound	770 mOhm
Delevan SDS680R-332M	85 °C	-40 °C	Ferrite	3.3 µH	Shielded	Nonstandard	20 %	1.6 A	120 MHz	100 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in	Surface Mount		Drum Core, Wirewound	55 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.09
	Digi-Reel®	1	$ 5.09
	Tape & Reel (TR)	2000	$ 2.68

Description

General part information

SDS680R Series

680 µH Shielded Drum Core, Wirewound Inductor 180 mA 2.2Ohm Max Nonstandard

Documents

Technical documentation and resources
