General part information
Sensor Cables / Actuator Cables 952301150 Sensor M18 tubular
Technical documentation and resources
Parameters and characteristics commom to parts in this series

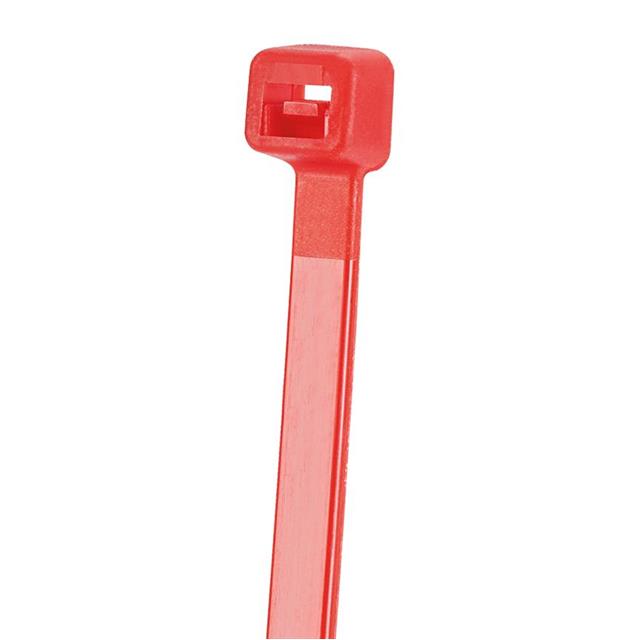

| Specification | S15-50-C2 | S15 Series |
|---|---|---|
| Bundle Diameter [diameter] | 102 mm | 102 mm |
| Bundle Diameter [diameter] | 4.02 in | 4.02 in |
| Color | Red | Red, Black, Natural |
| Features | - | UV Resistant |
| Length - Actual | 370 mm | 370 mm |
| Length - Actual | 1.214 ' | 1.214 ' |
| Length - Approximate | 14.5 in | 14.5 in |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tensile Strength | 22.68 kg | 22.68 kg |
| Tensile Strength | 50 lbs | 50 lbs |
| Width | - | 4.83 mm |
| Width [x] | 8.4 mm | 8.4 mm |
| Width [x] | 0.33 in | 0.19 - 0.33 in |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
Sensor Cables / Actuator Cables 952301150 Sensor M18 tubular
| Part | Color | Tensile Strength | Tensile Strength | Mounting Type | Wire/Cable Tie Type | Length - Actual | Length - Actual | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Width [x] | Width [x] | Material | Length - Approximate | Width | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp S15-50-C2 | Red | 22.68 kg | 50 lbs | Free Hanging (In-Line) | Locking, Standard | 370 mm | 1.214 ' | 102 mm | 4.02 in | 8.4 mm | 0.33 in | Polyamide (PA66), Nylon 6/6 | 14.5 in | ||
Panduit Corp S15-50-C0 | Black | 22.68 kg | 50 lbs | Free Hanging (In-Line) | Locking, Standard | 370 mm | 1.214 ' | 102 mm | 4.02 in | 0.19 in | Polyamide (PA66), Nylon 6/6 | 14.5 in | 4.83 mm | UV Resistant | |
Panduit Corp S15-50-M | Natural | 22.68 kg | 50 lbs | Free Hanging (In-Line) | Locking, Standard | 370 mm | 1.214 ' | 102 mm | 4.02 in | 0.19 in | Polyamide (PA66), Nylon 6/6 | 14.5 in | 4.83 mm | UV Resistant | |
Panduit Corp S15-50-C | Natural | 22.68 kg | 50 lbs | Free Hanging (In-Line) | Locking, Standard | 370 mm | 1.214 ' | 102 mm | 4.02 in | 0.19 in | Polyamide (PA66), Nylon 6/6 | 14.5 in | 4.83 mm | ||
Panduit Corp S15-50-M0 | Black | 22.68 kg | 50 lbs | Free Hanging (In-Line) | Locking, Standard | 370 mm | 1.214 ' | 102 mm | 4.02 in | 0.19 in | Polyamide (PA66), Nylon 6/6 | 14.5 in | 4.83 mm | UV Resistant |
