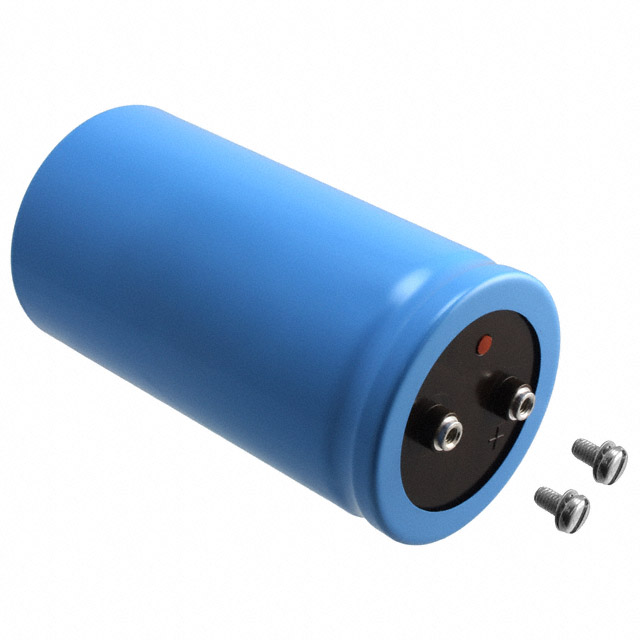

550C811T400BB2B
ActiveCornell Dubilier Knowles
CAP ALUM 810UF 400V SCREW CHAS M
550C811T400BB2B
ActiveCornell Dubilier Knowles
CAP ALUM 810UF 400V SCREW CHAS M
Description
General part information
550C811T400BB2B
810 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 550C811T400BB2B |
|---|---|
| Applications | General Purpose |
| Capacitance | 810 µF |
| Height - Seated (Max) | 3.187 in |
| Lead Spacing | 0.875 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 2 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 400 V |
