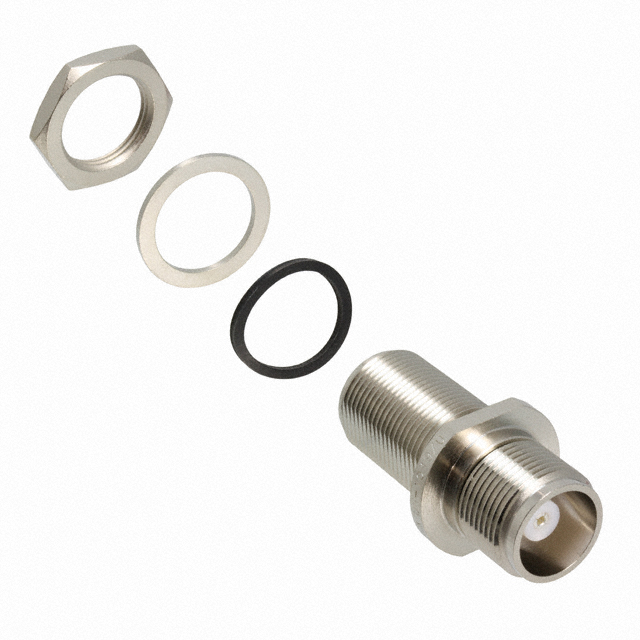

000-11050

Active

AMPHENOL RF

CONN ADAPT JACK-JACK HN 50 OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN ADAPT JACK-JACK HN 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	000-11050

Adapter Series	HN to HN
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	HN Jack, Female Socket
Convert To (Adapter End)	Female Socket, HN Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

CONN ADAPT JACK-JACK HN 50 OHM

Part	Body Material	Frequency - Max [Max]	Mating Cycles	Body Finish	Center Contact Plating	Mounting Feature	Adapter Series	Center Contact Material	Impedance	Convert To (Adapter End)	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Includes	Center Gender	Dielectric Material	Conversion Type	Style
AMPHENOL RF 000-11050	Brass	4 GHz	500	Nickel	Silver	Bulkhead	HN to HN	Beryllium Copper	50 Ohms	Female Socket, HN Jack	HN Jack, Female Socket	-65 ░C	165 °C	Jack to Jack	1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut	Female to Female	Polytetrafluoroethylene (PTFE)	Same Series	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector HN Jack, Female Socket To HN Jack, Female Socket 50 Ohms
