Specification	0761656606

Color	Black
Connector Style	Guide Left, Impact
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	48
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	16
Number of Positions	144
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076165 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Voltage Rating	Contact Finish	Pitch	Contact Finish Thickness	Connector Type	Termination	Number of Positions Loaded	Number of Rows	Number of Positions	Connector Style	Differential Pairs (Typical)	Number of Columns	Color	Mounting Type
Molex 0761658605	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	144	Guide Right Impact	48	16	Black	Through Hole

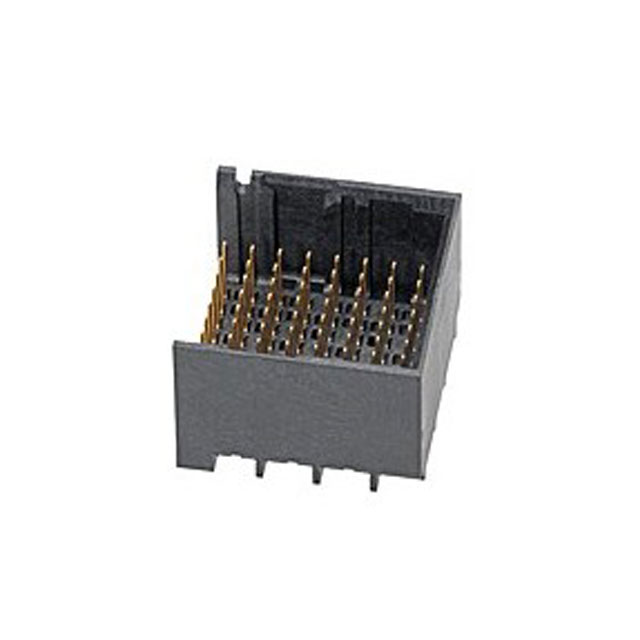

Molex 0761651837	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	72	Impact	24	8	Black	Through Hole
Molex 0761650814	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	72	Impact	24	8	Black	Through Hole
Molex 0761657804	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	72	Guide Left Impact	24	8	Black	Through Hole
Molex 0761658603	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	144	Guide Right Impact	48	16	Black	Through Hole
Molex 0761652103	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	90	Guide Left Impact	30	10	Black	Through Hole

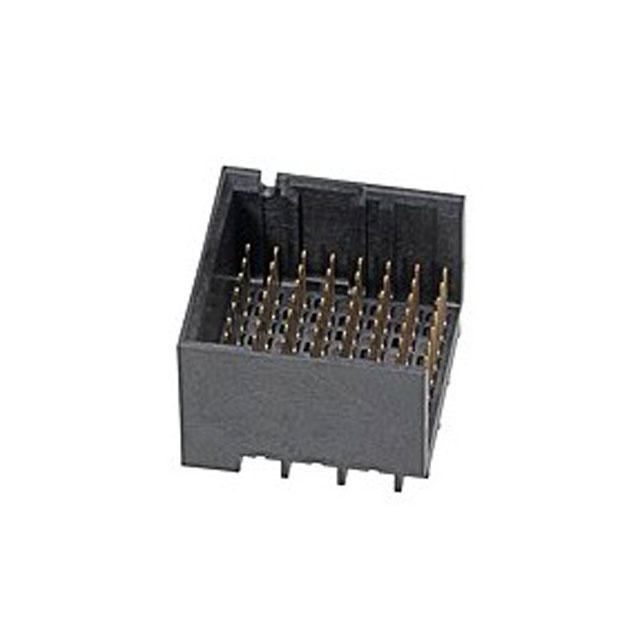

Molex 0761651813	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	72	Impact	24	8	Black	Through Hole
Molex 0761652805	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	72	Guide Left Impact	24	8	Black	Through Hole
Molex 0761654606	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	144	Guide Right Impact	48	16	Black	Through Hole
Molex 0761651104	-55 °C	85 °C	UL94 V-0	30 V	Gold	0.053 in	30 µin	Header Male Pins	Press-Fit	All	9	90	Impact	30	10	Black	Through Hole
