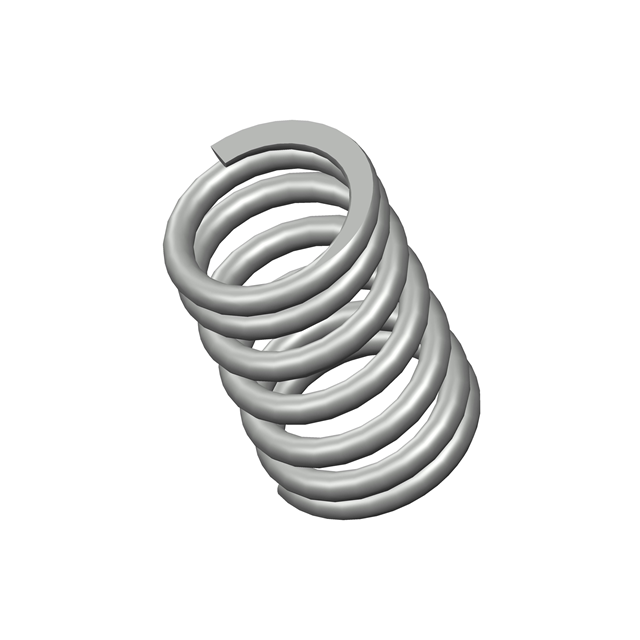

10547CS
ActiveCentury Spring Corp
COMP O=1.406,L= 2.13,W= .186
10547CS
ActiveCentury Spring Corp
COMP O=1.406,L= 2.13,W= .186
Description
General part information
10547CS
COMP O=1.406,L= 2.13,W= .186
Technical Specifications
Parameters and characteristics for this part
| Specification | 10547CS |
|---|---|
| Diameter - Inside | 1.034 in |
| Diameter - Outside | 1.406 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.13 in |
| Material | Spring Steel |
| Rate (lbs/in) | 199 lbs/in |
| Type | Compression |
| Wire Diameter | 0.186 in |
