Description
General part information
INS8367A-129-02UT

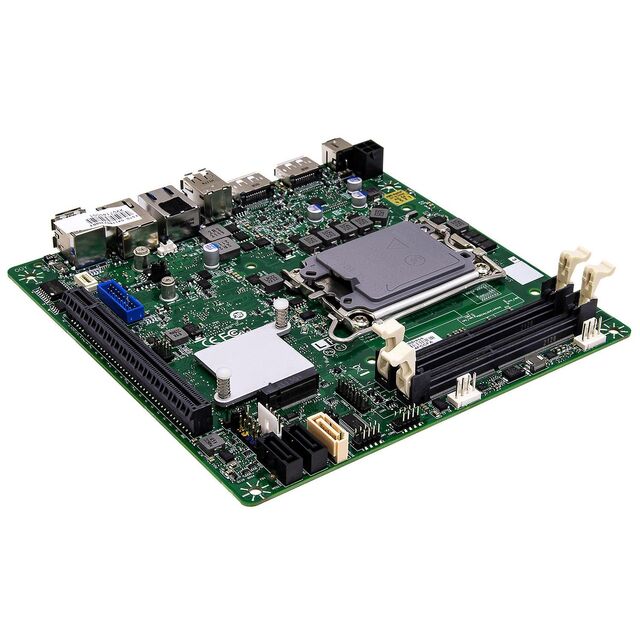

Single Board Computer 1.8 ~ 5.1GHz 16 Core 64GB/0GB RAM Intel® Core™ i9-12900K
Technical Specifications
Parameters and characteristics for this part
| Specification | INS8367A-129-02UT |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel® Core™ i9-12900K |
| Ethernet Connector | RJ45 (2) |
| Ethernet Ports | 2 |
| Expansion Site/Bus | PCIe, M.2 |
| Form Factor | Mini-ITX |
| Number of Cores | 16 |
| Number of Storage Interfaces | 2 count |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | 40 °C |
| Power (Watts) | 65 W |
| RAM Capacity | 64 GB |
| RAM Installed | 0 GB |
| Serial Interface Count | 2 |
| Size / Dimension Length | 6.69 in |
| Size / Dimension Width | 6.69 in |
| Speed (Max) | 5.1 GHz |
| Speed (Min) | 1.8 |
| Storage Interface | SATA 3.0 |
| Supported Serial Standards | RS-485, RS-422, RS-232 |
| USB | USB 2.0, USB 3.2 |
| USB 2.0 Count | 4 count |
| USB 3.2 Count | 4 count |
| Video Outputs | DP |
| Video Outputs (DP) Count | 2 |
| Watchdog Timer | Yes |
