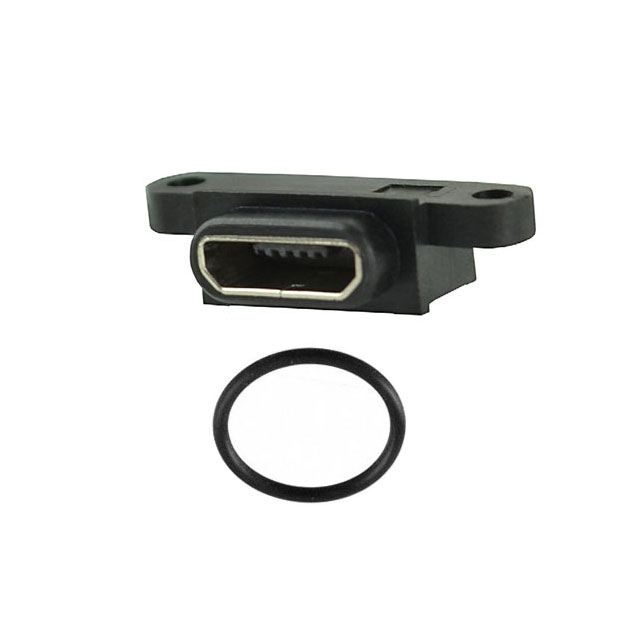

UJ2W-MIBH-4-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2W-MIBH-4-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2W-MIBH-4-SMT-TR |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 0.5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.81 | |
| 10 | $ 2.55 | |||
| 25 | $ 2.41 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.25 | |||
| 250 | $ 1.97 | |||
| 500 | $ 1.91 | |||
| Digi-Reel® | 1 | $ 2.81 | ||
| 10 | $ 2.55 | |||
| 25 | $ 2.41 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.25 | |||
| 250 | $ 1.97 | |||
| 500 | $ 1.91 | |||
| Tape & Reel (TR) | 1350 | $ 1.44 | ||
Description
General part information
UJ2W-MIBH-4-SMT-TR
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
