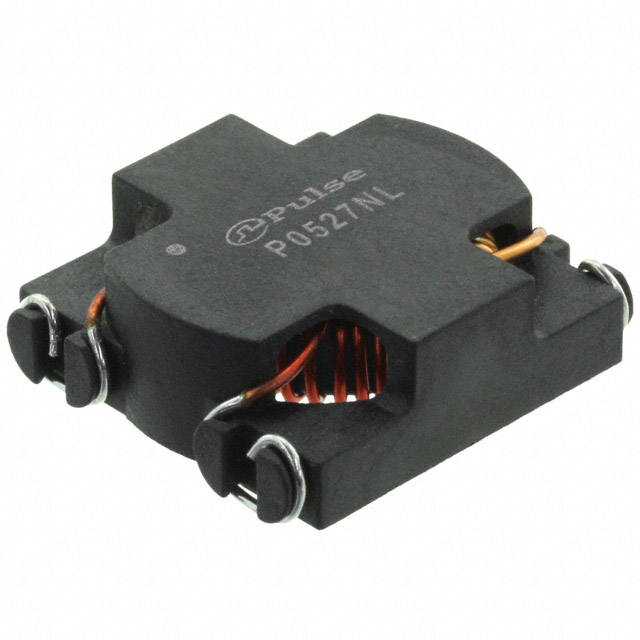

P0527NLT
ActivePulse Electronics
COMMON MODE CHOKES / FILTERS SMD COMMONMODE CHOKE 530UH .015OHMS
P0527NLT
ActivePulse Electronics
COMMON MODE CHOKES / FILTERS SMD COMMONMODE CHOKE 530UH .015OHMS
Description
General part information
P0527NLT
2 Line Common Mode Choke Surface Mount 7.2A DCR 15mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | P0527NLT |
|---|---|
| Current Rating (Max) | 7.2 A |
| DC Resistance (DCR) (Max) | 15 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.395 in |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 1.11 in |
| Size / Dimension Width | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
