1327-BK
ActiveAnderson Power Products, Inc.
CONN HSG 1POS RED
1327-BK
ActiveAnderson Power Products, Inc.
CONN HSG 1POS RED
Description
General part information
1327-BK

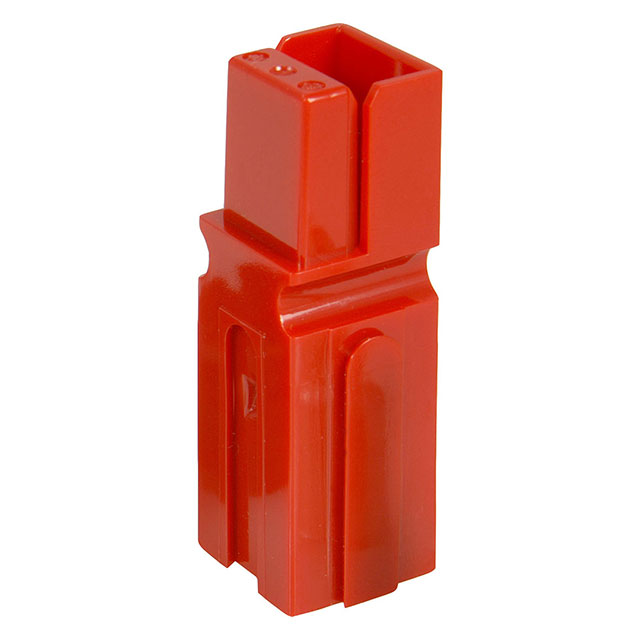

1 Position Blade Type Power Housing Connector Non-Gendered, Self Mating Red
Technical Specifications
Parameters and characteristics for this part
| Specification | 1327-BK |
|---|---|
| Color | Red |
| Connector Type | Non-Gendered, Self Mating |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Current Rating | 55 A |
| Fastening Type | Spring Retention |
| Features | Stackable |
| Material - Insulation | PC, Polycarbonate |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Voltage Rating | 600 V |
