010832WF028
ActiveEssentra Access Solutions

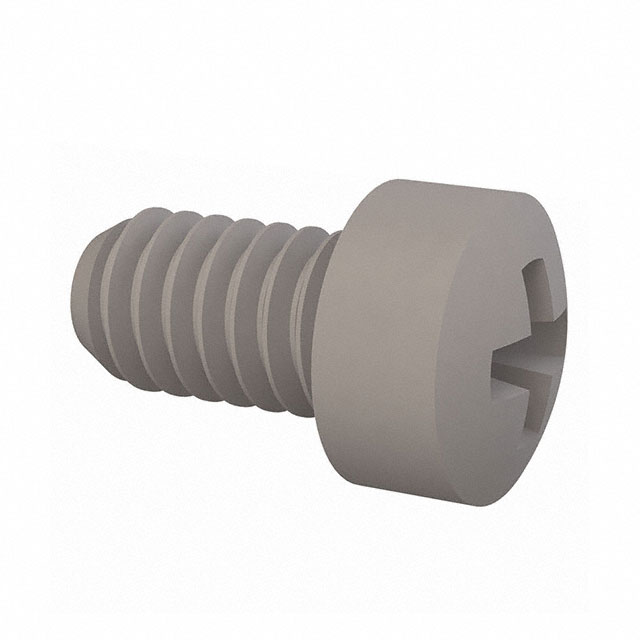

FILLISTER PHILLIPS SCREW 8-32
Deep-Dive with AI
Search across all available documentation for this part.
010832WF028
ActiveEssentra Access Solutions
FILLISTER PHILLIPS SCREW 8-32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 010832WF028 |
|---|---|
| Drive Type | Phillips |
| Head Diameter [diameter] | 6.6 mm |
| Head Diameter [diameter] | 0.26 in |
| Head Height | 7.34 mm |
| Head Height | 0.289 " |
| Length - Overall [x] | 14.48 mm |
| Length - Overall [x] | 0.57 in |
| Material | Nylon |
| Screw Head Type | Pan Head |
| Thread Size | #8-32 |
| Type | Machine Screw |
010832WF Series
| Part | Length - Below Head | Length - Below Head | Length - Below Head | Material | Screw Head Type | Type | Drive Type | Thread Size | Head Diameter [diameter] | Head Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Head Height | Head Height | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head [custom] | Length - Below Head [custom] | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | 0.75 " | 19.05 mm | 0.75 " | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 1.039 in | 26.39 mm | |||||||
Essentra Access Solutions | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 1.414 " | 35.92 mm | 7.34 mm | 0.289 " | 28.58 mm | 1.125 in | ||||||
Essentra Access Solutions | 25.4 mm | 1 in | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 1.289 in | 32.74 mm | ||||||||
Essentra Access Solutions | 0.625 in | 15.88 mm | 0.625 in | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 0.914 in | 23.22 mm | |||||||
Essentra Access Solutions | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 7.34 mm | 0.289 " | 7.94 mm | 0.313 in | ||||||||
Essentra Access Solutions | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 1.539 in | 7.34 mm | 0.289 " | 31.75 mm | 1.25 in | 39.09 mm | ||||||
Essentra Access Solutions | 0.25 in | 6.35 mm | 0.25 in | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 0.539 in | 13.69 mm | |||||||
Essentra Access Solutions | 38.1 mm | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 1.789 " | 45.44 mm | 7.34 mm | 0.289 " | 1.5 in | ||||||
Essentra Access Solutions | Nylon | Pan Head | Machine Screw | Phillips | #8-32 | 6.6 mm | 0.26 in | 0.57 in | 14.48 mm | 7.34 mm | 0.289 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.06 | |
Description
General part information
010832WF Series
#8-32 Pan Head Machine Screw Phillips Drive Nylon
Documents
Technical documentation and resources
No documents available
