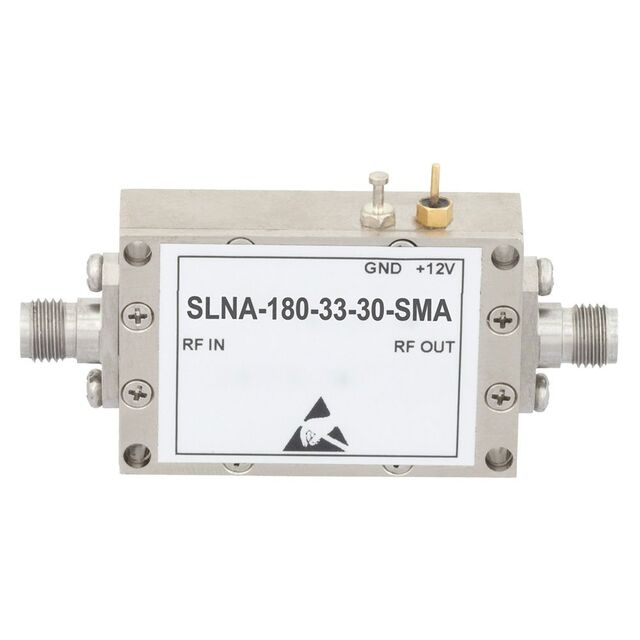

SLNA-180-33-30-SMA
ActiveFairview Microwave
BROADBAND AMP TYPE SMA 2GHZ-18GH
SLNA-180-33-30-SMA
ActiveFairview Microwave
BROADBAND AMP TYPE SMA 2GHZ-18GH
Description
General part information
SLNA-180-33-30-SMA
RF Amplifier IC General Purpose 2GHz ~ 18GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SLNA-180-33-30-SMA |
|---|---|
| Current - Supply | 180 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 2 GHz |
| Gain | 38 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3 dB |
| P1dB | 15 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
